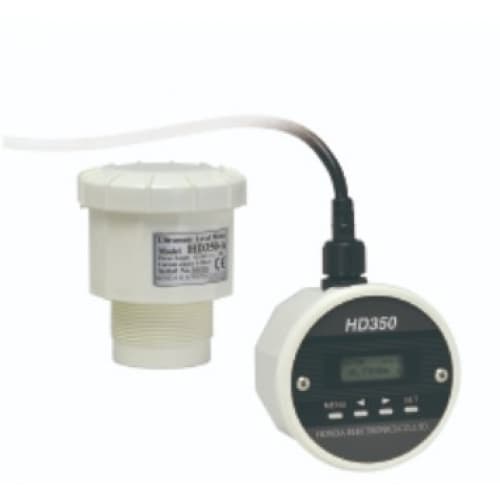

Máy đo mức bằng siêu âm Ultrasonic Level Meter HONDA HD350-A HD353-A

Model No.		HD350-A
Number of channels		1
Frequency		50kHz
Measurement target		liquid / powder
Measurement distance range (1/2 for powder)		0.3 to 10m
Resolution	Measurement	1mm
	Display	1mm
Accuracy		±0.25%F.S. (±2.5cm)
Data update cycle		0.5 sec
Sensor directive angle (beam angle)		14°(-6dB)　/　10°（-3dB)
Power source	Voltage	12 - 24 VDC ±10%
	Power consumption	3 W
Display		Graphic LCD
Display size		28.1 x 9.1mm
Output	Alarm output	1 point each for upper/lower  (NPN open collector)
	4-20 mA current	Resolution: 12 bits             (Max. load 500Ω)
Interface		RS-485 (Transmitting distance : max. 1200m)
Ambient operating temperature		-20 to 70℃
Material		PP (polypropylene)
Protection		IP65 equivalent (without lid: IP20 equivalent)
Dimensions		dia. 93 x 110mm
Cable length		10m
Weight		350g
Mounting screw		G2 (PF2)

Option: 30m cable

For screen mode can be selected

Large display is adopted for HD353-A (Display size : 50 x 25mm, 49% larger than HD350-A)

Mask function
Unnecessary signal can be eliminated from the received signal by manually.
Echo signal from existing structure positioned between sensor and target cause interference. Mask function removes these unnecessary echo effectively.

Interface
Three interface methods are prepared for remote operation.

1) RS-485 (MODBUS protocol)
2) 4-20 ｍA current output
3) Contact points (relay output)
