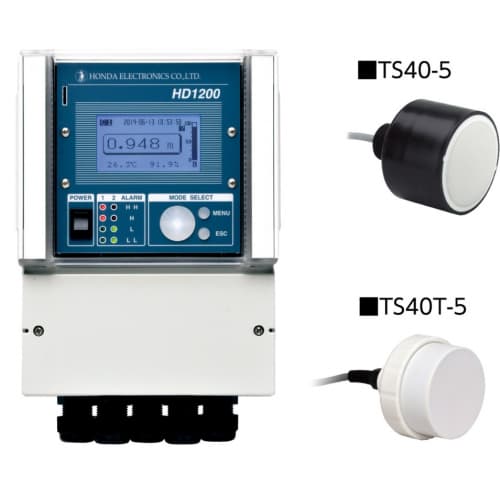

Máy đo mức bằng siêu âm Ultrasonic Level meter HONDA HD1200, cảm biến TS40-5 TS40T-5
- Advanced level sensing algorithm suppresses the noise level and artifacts and enabled stable measurement.
- One main unit handles two sensors at once. Two different types of sensors can be installed and each may measures different range.
- Data logging function to micro SD TM.
- Flow measurement by measuring catchment level is possible.
Usage
- Level control of liquid, powder or grains in a tank
- Level measurement of pond, lake or river
- Open channel flow measurement (catchment level)
| Model No. | HD1200 | |
|---|---|---|
| Channel | 2 | |
| Frequency | 10 to 60 kHz (select by sensor) | |
| Measurement object | liquid / powder | |
| Resolution | Measurement | 1 mm |
| display | 1 mm | |
| Accuracy | ±0.25% F.S. | |
| Data refresh rate | 2 sec. approx. (depends on sensor) | |
| Power source | Voltage | 100 to 240 V AC ±10 % |
| Power consumption | 10 VA | |
| Display | LCD with backlight | |
| Output | Alarm | 4 points / channel 250VAC, 5 A (relay contact) |
| 4-20mA current | Resolution: 1/4000 (Max. load resistance 600Ω) |
|
| Interface | RS-485 (max. distance: 1200 m or less) RS-232C (max. distance: 10 m or less) |
|
| Memory | microSDTM *1 | |
| Operation temperature | -20 to 70℃ | |
| Material | ABS | |
| Protection | IP66 equivalent | |
| Dimension (WxDxH mm) | 176ｘ84ｘ237 | |
| Weight | 1.8 kg | |
NOTE : Weir type flowmeter is available on CH1
*1 : microSDTM is a trademark of SD Card Association
| Model No. | Sensor | |
|---|---|---|
| TS40-5 | TS40T-5 | |
| Frequency | 40 kHz | |
| Measurement range (1/2 value for powder) |
0.3 to 20ｍ | 0.3 to 15m |
| Directive angle (half of full angle) |
12°(-6dB) 8°(-3dB) |
22°(-6dB) 16°(-3dB) |
| Operation temperature | -20 to 70℃ | |
| Material | Epoxy/silicone/ PP | PVDF |
| Protection | IP68 equivalent | IP68 equivalent |
| Dimension (mm) | dia. 84x90 | dia. 98x87 |
| Sensor cable length | 5m | |
| Weight | 500g | 860g |
| Mounting screw | R1 (PT1) | G1 (PF1) |
TS40T-5 is chemical resistant.
●The sensors cannot be used in hydrofluoric acid environment.
