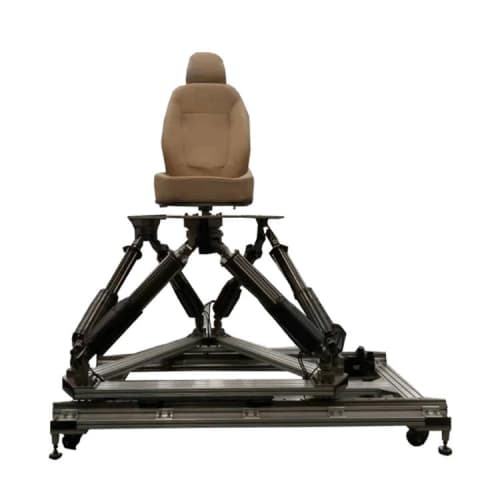

Bàn mô phỏng 6-DOF SM16-100 SM16-200 SM16-500 SM16-1000 SM16-2000 SM16-5000 SM16-10T Simulation Table

6-DOF Simulation Table is a closed-loop servo simulation platform consisting of six servo actuators and six sets of dedicated hinges connected at the top and bottom platforms respectively. By virtue of the telescopic movement of the six actuators, the upper platform moves in six degrees of freedom (X, Y, Z, α, β, γ), so various space motion attitudes can be simulated.

It is widely applied as testing or training simulators in the field of aircraft, vessel, helicopters taking off and landing, automotive, train, earthquake, motion movies, entertainment equipment and other fields. It can even be used for docking of space spacecraft and for refueling of aerial tankers. In the processing industry, it can be made into six-axis linkage machine tools, smart robots, etc.

Features

• It can realize posture simulation, sine wave simulation, single-DOF motion, and multiple-DOF composite motion.

• It can realize road spectrum filtering, road spectrum, wave spectrum, and flight spectrum replication.

• Provide third-party communication interface through TCP / IP protocol.

• Provide internal and external data output control interfaces.

Model	SM16-100	SM16-200	SM16--500	SM16-1000	SM16-2000	SM16-5000	SM16-10T
Parameters
Max. Load (kg)	100	300	500	1000	2000	5000	10000
Height of Specimen COG  (mm)	500-1000(customized by   product)
Table Dimension (mm)	customized by testing   conditions
Pitch	±10°/±20°/±30°/±45°/±50°/±60°(customized)
Roll	±10°/±20°/±30°/±45°/±50°/±60°(customized)
Course	±10°/±20°/±30°/±45°/±50°/±60°/full   circle(customized)
Pitching Displacement (mm)	±50／±80／±100／±200／±300／±400／±500
Rolling Displacement (mm)	±50／±80／±100／±200／±300／±400／±500
Heaving (mm)	±50／±80／±100／±200／±300／±400／±500
Power Supply	AC380V±10%,50/60Hz
Working Environments	Temperature Range: 0-40°C,   Humidity 80% (no condense)
Standards	AC156   ISO   12405   ISO 13849-1   ISO   13090-1   ISO 2631-1
