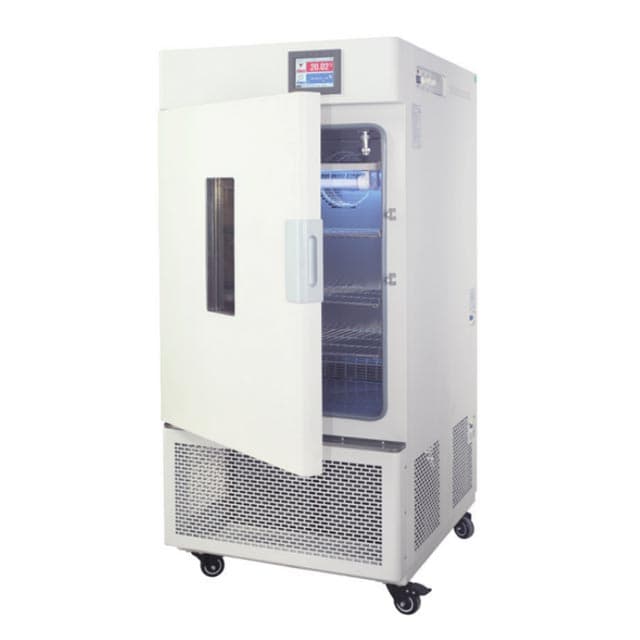

Buồng thử thuốc đèn UV SM-LHH-150GSD-UV SM-LHH-250GSD-UV SM-LHH-500GSD-UV SM-LHH-800GSD-UV SM-LHH-1000GSD-UV SM-LHH-150GP-UV

Comprehensive drug lighting stability test chamber  (UV lamp supervise and control)

◆Lighting system of the comprehensive drug lighting stability test chamber

●Comprehensive drug lighting stability test chamber accord with the requirement of lighting stability and relevant international manufacturing standards. Supported by the 2015 Pharmacopoeia drug stability test guidelines. Simulate a stable temperature, humidity and lighting condition of long time operation in a scientific way.

●Rack illumination system or outdoor illumination system for chosen. Visible modulator tube and UV lamp modulator tube included and independent controlled.

Comprehensive drug lighting stability test chamber  (UV lamp supervise and control) Loading bracket adjustable.

◆Irradiance supervise and control

●Breakthrough the defect of irradiance can not be displayed and supervised, decrease the irradiance attenuation problem and error caused by the experiment. Provide the lighting sensor and UV lamp detector, convenient for the users to observe and calibrate.

◆Professional UV lamp modulator tube

●Compare to the normal UV lamp modulator tube, our professional UV lamp have the features of high quality and even spectral powder distribution, avoid the affection caused by the aging problem.

●Apply the UV lamp holder which can run normally under the high wet condition.

◆Humanized design

●Newly fluoride-free design, high efficiency, energy saving.

●Micro-computer controller: accuracy control, special sterilization 304 stainless steel liner, semicircle design(Four corners), easy cleaning.

●Special air circulatory system, ensure the temperature and humidity even inside.

●A φ25mm testing hole on the left side of the chamber

◆Continuous operation qualified

●2 sets imported compressor automatically switch, prevent the long time running defect from happening.

●Non-defrosting, continuous operation work normally.

◆Quality qualified

●Imported temperature and humidity controller, compressor and circulating fan, make the continuous operation possible.

◆Imported humidity sensor

●Apply the humidity sensor work under the high temperature.

◆Programmable touch screen controller(GSP series)

●Large LCD touch screen, easy operation and programmed.

●Language switch on the operation menu, data display.

●100 programs, 999 circular steps. Timing setting from 1~5999 min.

●After data and experiment parameters input, password lock screen runs, security control.

●P.I.D auto tuning function, amend the temperature and humidity change, accuracy control.

●RS-232 or RS-485 communication screen; Input process on computer, supervise the experiment process.

 ◆Data record and error display

●LCD screen will display the error information when the device breaking down.

●Printer or RS485 port inside; Temperature recording(Optional choice).

 ◆Wireless alarm system(SMS alarm system)-optional

●Message will be delivered to the users when error occurs at the first moment. Ensure the security.

◆Security function

●Independent temperature warning system; sound-light alarm.

●Too high/too low and over temperature also trigger the alarm.

●Standard with door Lock system, prevent the UV hurting people when the chamber under running.

●Password Lock Screen, security control.

 ※Provide 3Q verification and calibration services(Optional choice):

※Provide the IQ/OQ/PQ service to customers, meet the drug stability test chamber performance and requirement. Guarantee the highly accuracy of temperature and humidity data.(Optional)

※Provide the authority third party testing report in shanghai.(Optional choice)

Comprehensive drug lighting stability test chamber  (UV lamp supervise and control) Execution and satisfying criteria:

Supported by the 2015 Pharmacopoeia drug stability test guidelines and GB/T10586-2006 relevant terms.

●Speed up experiment: 40℃ ±2.0℃/75%RH±5%RH; or 30℃ ±1.0℃/60%RH±5%RH 180 days.

●Long-term experiment: 25℃ ±2.0℃/60%RH±5%RH，or 30℃±2.0℃/60%RH±5%RH 365 days

●Highlight illumination experiment: 4500±500LX 10 days

●Meeting the Q1B illumination requirement:  total illumination≥1.2×106LUX.hr;

Ultraviolet energy ≥200W.hr/m 2.

●Illumination and Ultraviolet irradiation test can be done together.

Comprehensive drug lighting stability test chamber  (UV lamp supervise and control) Technical parameters:

Model	SM-LHH-150GSD-UV	SM-LHH-250GSD-UV	SM-LHH-500GSD-UV	SM-LHH-800GSD-UV	SM-LHH-1000GSD-UV	SM-LHH-150GP-UV
	SM-LHH-150GSP-UV	SM-LHH-250GSP-UV	SM-LHH-500GSP-UV	SM-LHH-800GSP-UV	SM-LHH-1000GSP-UV	SM-LHH-250GP-UV
					SM-LHH-1500GSP-UV	SM-LHH-400GP-UV
Temperature control range	Without illumination: 0～65℃; with illumination: 10～50℃
Temperature fluctuation	±0.5℃ /±2℃
Humidity control  range/Humidity deviation	35~95%RH/±3%RH					None
Illumination intensity	Cool white fluorescent 0-6000Lux adjustable/±500Lux, UV light   intensity adjustable
Ultraviolet spectral range	320~400nm
conform to test standard	ICH Q1B command, Cool white fluorescent≥1.2×106Lux.hr; ultraviolet fluorescence≥200 w.hr/m2
Illuminant	Cool white fluorescent(conform to ISO 10977); UVA ultraviolet fluorescence
Standard light source	Cool white light(D65, 6500k)/ UV wavelength coverage：320-400nm
Refrigerating system	2 sets imported compressor automatically switch
Controller	GSD series: programmable LCD controller; GSP series: programmable touch screen controller					Programmabe  LCD controller
Power supply	AC220V 50HZ			AC380V 50HZ		AC220V 50HZ
Volume	150L	250L	500L	800L	1000L/1500L	150L/250L/400L
Liner dimension	550×405×670	600×500×830	670×725×1020	800×590×1650	1050×590×1650	550×405×670
(W×D×H mm)
					1550×590×1650	600×500×830
						700×550×1140
Outside dimension	690×805×1530	740×890×1680	850×1100×1930	1360×890×2000	1610×890×2000	690×805×1530
(W×D×H mm)
					2110×890×2000	740×890×1680
						950×850×1850
Light way	Illumination on top/ Illumination on door		Illumination on top			Illumination on door / Illumination on top
Embedded printer	standard configuration
Security system	Over temperature protection, water shortage protection, wire alarm   system
Remarks	1.High accuracy digital recorder
	2.Manual stepless adjusted, standard with illumination detector and UV detector, UV illumination on top
	3.Multi-layer illuminator
