◆Humanized design
● Newly fluoride-free design, high efficiency, energy saving.
● Micro-computer control, special sterilization stainless steel liner, semicircle design(Four corners), easy cleaning.
● Circular air duct, ensure the air stay even inside. A φ25mm testing hole at the right side of chamber.
◆Continuous operation qualified
● 2 sets imported compressor automatically switch, prevent the long time running defect from happening.
● Non-defrosting, continuous operation work normally.
◆Quality qualified
● Imported temperature and humidity controller/compressor/circular fan, stable running condition, security operation.
◆Security function
● Independent temperature warning system; sound-light alarm.
● Too high/too low and over temperature also trigger the alarm.
● Password Lock Screen, security control.
◆Imported humidity sensor
● Imported humidity sensor.
◆UV sterilization system.(Optional choise)
● The UV sterilization system disinfect virus and prevent the chamber from being pollution.
◆Illumination automatically detect and control(Optional)
● Breakthrough the defect of domestic drug stability test chamber, apply the illumination sensor for detection, decrease the error from happening due to the modulator tube aging problem.
◆Data record and error display
● LCD screen will display the error information when the device breaking down.
● Printer or RS485 port inside; Temperature recording(Optional choice).
Programmable touch screen controller(Optional)
● Large LCD screen, easy programmed.
● Language switch on the operation menu, data display.
● 100 programs, 999 circular steps. Timing setting from 1~5999 min.
● After data and experiment parameters input, password lock screen runs, security control.
● P.I.D auto tuning function, amend the temperature and humidity change, accuracy control.
● RS-232 or RS-485 communication screen; Input process on computer, supervise the experiment process.

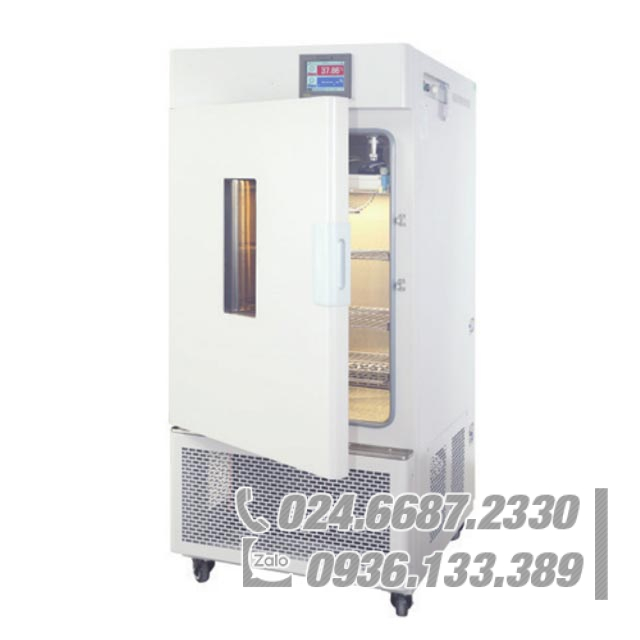

Comprehensive Drug Stability Test Chamber-Germany advanced techniques Execution and satisfying criteria:
Supported by the 2015 Pharmacopoeia drug stability test guidelines and GB/T10586-2006 relevant terms.
★Stability experimental condition:
In the ICH guideline, GMP and FDA define the function/performance and documents.
Europe/Japan/America agree to settle down common experiment for stability use. In order to collect information about the effectiveness of the drugs in different temperature, humidity and lighting environment.
★Storage conditions for long term stability test of reserved samples
Temperature: +25℃±2℃
Humidity: 60±5%RH
Time: 12 months
★Storage conditions for speed up stability test
Temperature: +40℃±2℃
Humidity: 75±5%RH
Time: 6 months
Illumination in highlight condition: 4500±500LX
The relevant data above is just for reference.
Comprehensive Drug Stability Test Chamber-Germany advanced techniques Technical parameters:
| Name | Drug stability test chamber |
Comprehensive drug stability test chamber |
Highlight drug stability test chamber |
||
| Model | SM-LHH-80SD | SM-LHH-80SDP | SM-LHH-150GSD | SM-LHH-150GP | |
| SM-LHH-150SD | SM-LHH-150SDP | SM-LHH-150GSP | SM-LHH-250GP | ||
| SM-LHH-250SD | SM-LHH-250SDP | SM-LHH-250GSD | SM-LHH-400GP | ||
| SM-LHH-250GSP | |||||
| Temperature control range | 0~65℃ | Without illumination: 0～65℃; | |||
| With illumination: 10～50℃ | |||||
| Temperature fluctuation | ±0.5℃/±2℃ | ||||
| Humidity control range/ | 35~95%RH/±3%RH | None | |||
| Humidity deviation | |||||
| Illumination intensity | None | 0-6000LX adjustable≤±500LX | |||
| (Stepless adjusted) | |||||
| Setting time range | Each step 1~99 hrs | ||||
| Temperature and humidity control | Balanced temperature and humidity control | Balanced temperature control | |||
| Refrigerating system | 2 sets imported compressor automatically switch | ||||
| Controller |
Programmable LCD controller |
Programmable touc h screen controller |
GSD：Programmable LCD controller |
Programmable LCD controller |
|
|
GSP：Programmable touch screen controller |
|||||
| Sensor | Pt100 platinum resistor Capacitive sensor | Pt100 platinum resistor | |||
| Operation ambient temperature | RT+5～30℃ | ||||
| Power supply | AC220V±10% 50HZ | ||||
| Input power | 2000W/2100W/2300W | 2250W/2250W/2500W/2500W | 1450W/1700W/3200W | ||
| Volume | 80L | 80L | 150L | 150L | |
| 150L | 150L | 250L | 250L | ||
| 250L | 250L | 400L | |||
| Liner dimension (W×D×H mm) |
400×400×500 | 400×400×500 | 550×405×670 | 550×405×670 | |
| 550×405×670 | 550×405×670 | 600×500×830 | 600×500×830 | ||
| 600×500×830 | 600×500×830 | 700×550×1140 | |||
| Outside dimension (W×D×H mm) |
550×790×1080 | 550×790×1080 | 690×805×1530 | 690×805×1530 | |
| 690×805×1530 | 690×805×1530 | 740×890×1680 | 740×890×1680 | ||
| 740×890×1680 | 740×890×1680 | 950×850×1850 | |||
| Loading Bracket(Standard) | 2/3/3 pcs | 2/3/3 pcs | 3/3 pcs | 3/3/4 pcs | |
| Embedded printer | standard configuration | ||||
| Security system | Over temperature protection, water shortage protection, wire alarm system | ||||
| Remarks | 1.SD、SDP、GSD、GSP、GP series, embedded printer; | ||||
| 2.Pick printer on touch screen controller、 RS485 connector or USB connector two-out-three. | |||||
| Pick LHH-80SD、LHH-150SD/GSD，LHH-250SD/GSD printer or RS485 connector one-out-two. | |||||
| 3.GP、GSD、GSP series, manual stepless adjusted, standard with illumination detector. | |||||
| 4.GP/GSD/GSP series can be installed 2 layers illumination device. | |||||
| 5.LHH-80SD、LHH-80SDP is one set imported whole sealing compressor | |||||
※Under the idle condition, Performance Parameters tested like this:
Environment temperature is 20℃, environment humidity is 50% RH
※Provide 3Q verification and calibration services(Optional choice):
※Provide the IQ/OQ/PQ service to customers, meet the drug stability test chamber performance and requirement. Guarantee the highly accuracy of temperature and humidity data.(Optional)
※Provide the authority third party testing report in shanghai.(Optional choice)
