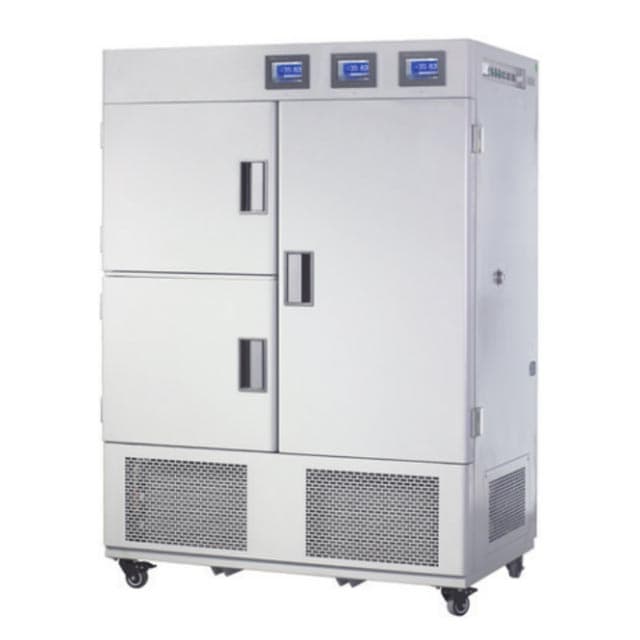

Buồng thử thuốc đa khoang SM-LHH-SS-I (2 zones) SM-LHH-SS-II (2 zones) SM-LHH-SG-I (2 zones) SM-LHH-SG-II (2 zones) SM-LHH-SSG(3 zones)

Comprehensive drug stability test chamber(multi-zones series) Product features:

●Combine stability test and illumination test, shorten the testing time and saving space.

●Special sterilization stainless steel liner, semicircle design(Four corners), easy cleaning.

●Newly fluoride-free design, high efficiency, energy saving.

●LCD touch screen controller, operation condition and data display.

●2 sets imported compressor automatically switch, prevent the long time running defect from happening.

●Non-defrosting, continuous operation work normally.

●Imported humidity sensor.

●Temperature/humidity/illumination testing independent control, improve the R&D efficiency.

Programmable touch screen controller(SDP/GSP series for reference)

Security function:

●The warm-up system automatically stop when the door open.

●Automatic control of circulating fan speed, avoiding the volatilization of samples effectively.

●Password Lock Screen, security control.

●Independent temperature warning system; sound-light alarm.

●Temperature deviation alarm, over temperature/ water shortage protection.

※Provide 3Q verification and calibration services(Optional choice):



Comprehensive drug stability test chamber(multi-zones series) Technical parameters:

Model	SM-LHH-SS-I		SM-LHH-SS-II		SM-LHH-SG-I		SM-LHH-SG-II		SM-LHH-SSG(3 zones)
	(2 zones)		(2 zones)		(2 zones)		(2 zones)
Temperature  control range	0~65℃				Without   illumination: 0～65℃;				Without   illumination: 0～65℃;
					with illumination: 10～50℃				with illumination: 10～50℃
Temperature fluctuation	±0.4℃
Temperature uniformity	±2℃
Humidity control range	35~95%RH
Humidity deviation	±3%RH
Illumination intensity					0~6000LX   adjustable≤±500LX
Refrigerating system	Imported compressor
Controller	Programmable LCD touch screen controller
Sensor	Pt100 platinum resistor Capacitive sensor
Power supply	AC220V 50HZ								AC380V 50HZ
Input power	3100W				3250W				5200W
Volume（L）	Up	down	up	down	up	down	up	down	1	2	3
	100L	100L	150L	150L	100L	100L	150L	150L	100L	100L	225L
Liner dimension	500×450×450		660×520×450		500×450×450		660×520×450		500×450×450		500×450×1000
(W×D×H mm)
Outside dimension	685×743×1835		845×743×1970		685×743×1835		845×743×1970		1300×801×1835
(W×D×H mm)
Illumination	-	-	-	-	√	-	√	-	√	-	-
Rack (standard configuration)	2	2	2	2	2	2	2	2	2	2	4





Optional accessories:

1.   Wire alarm system;

2.    Illumination automatically detect and control;

3.    UV sterilization system;

4.    Wireless alarm system;

5.    Paperless recorder(universal type);

6.    SDR100 imported paperless recorder
