Buồng thử thuốc ánh sáng UV SM-LHH-150GSD-UV, SM-LHH-150GSP-UV, SM-LHH-250GSD-UV,SM-LHH-250GSP-UV,SM-LHH-500GSD-UV,SM-LHH-500GSP-UV,SM-LHH-800GSD-UV,SM-LHH-800GSP-UV,SM-LHH-1000GSD-UV,SM-

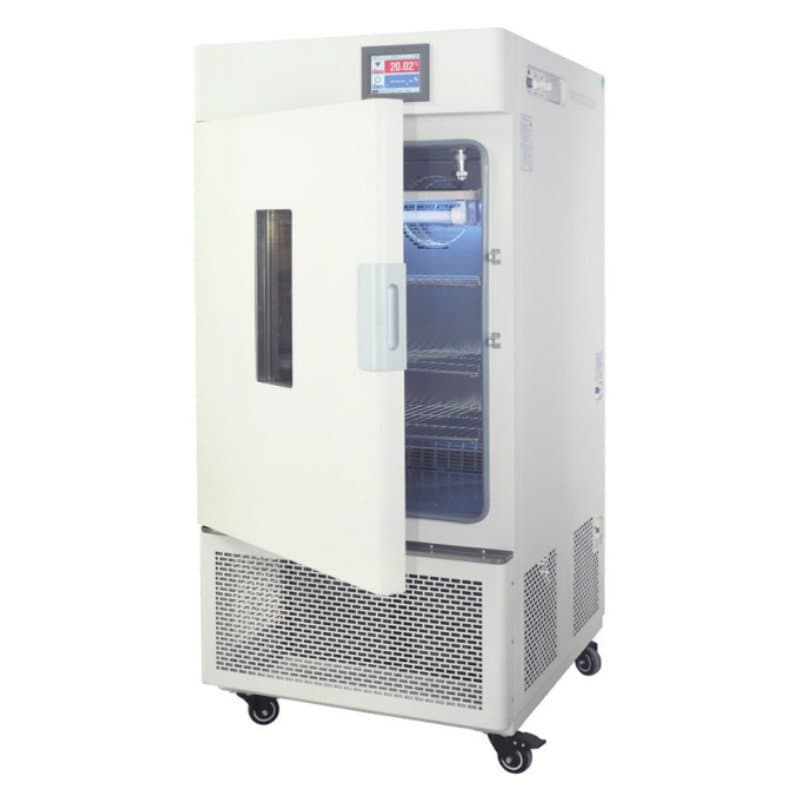

Drug stability test chamber-UV

1. Product Name: Drug stability test chamber-UV

2. Drug stability test chamber-UV Product model:

SM-LHH-150GSD-UV, SM-LHH-150GSP-UV, SM-LHH-250GSD-UV,SM-LHH-250GSP-UV,SM-LHH-500GSD-UV,SM-LHH-500GSP-UV,SM-LHH-800GSD-UV,SM-LHH-800GSP-UV,SM-LHH-1000GSD-UV,SM-LHH-1000GSP-UV,SM-LHH-1500GSP-UV,SM-LHH-150GP-UV,SM-LHH-250GP-UV,SM-LHH-400GP-UV

3. Drug stability test chamber-UV Applications:

Drug stability test chamber-UV is a necessary equipment for pharmaceutical and cosmetic enterprises GMP certification. With light stability testing conditions in the ICH guidelines. To create a scientific method of drug evaluation failure for a long time and stable temperature, humidity and light environment for pharmaceutical enterprises to accelerate drug test, long-term test, high humidity test and light irradiation test, is the pharmaceutical enterprises the best choice drug stability test program.

4.Drug stability test chamber-UV Products features

 Illumination system for integrated drug light stability test cabinet

(1)Comprehensive drug stability test chamber light illumination system with LCH light stability test of Q1b new raw materials and new preparation requirements are consistent with the corresponding international manufacturing standards, meet the Pharmacopoeia 2015 drug stability test guideline. The scientific method to simulate a drug test failure period of long time needed on the stable temperature humidity and light stability test environment. For pharmaceutical enterprises of new raw materials and new formulations of temperature and humidity and light stability testing requirements.

(2) The illumination system can choose shelf type illumination system or outer illumination system with visible light and ultraviolet lamp lamp, lamp can be controlled independently of visible light and UV lamp, also can choose single or double visible light or ultraviolet lamp tubes; adjustable sample loading shelf in the studio (double light height. As the system of selecting light irradiance display monitoring and control)

(3)To break the existing drug stability test box cannot display defects and irradiance monitoring, reduce the visible light and UV lamp as lamp aging caused by irradiance attenuation caused by the drug stability test error. The light intensity can also be carried out in accordance with the user requirements of the test stepless regulation, we also provide with a light sensor of visible light and ultraviolet measuring probe, and after irradiance monitor third party authentication, user observation and calibration

 Drug stability test chamber-UV   Professional UV tube

(1) To meet the requirements of professional ultraviolet light stability test of Q1b new drug substances and new formulations of ICH, compared with other UV lamp, has the characteristics of stable quality and uniform power spectrum, and the spectral power distribution is not with the lamp aging caused by attenuation, more benefit is to repeat the test results.

(2)The ultraviolet lamp holder can be used in high humidity condition

    Humanization design

(1) New fluorine free design: high efficiency, low energy consumption, and promote energy saving, so that you always walk in the forefront of healthy living

(2) Microcomputer controller: the control is stable, accurate and reliable. It adopts 304 stainless steel inner container, four corners semicircle arc shape, easy to clean and easy to operate

(3) Unique air circulation: ensure that the wind inside the studio is evenly distributed

(4) The left side of the box is fitted with a test hole with a diameter of 25mm

     Continuous operation guarantee

(1) Two sets of imported compressor automatic switching, to ensure that the drug test running for a long time without failure, break through the domestic drug testing box can not run continuously for a long time defects

(2) Continuous operation without defrosting, avoid in the process of using, because of the temperature and humidity fluctuations caused by frost box.

    Quality assurance

(1)Temperature and humidity controller, compressor, cycle fan and other key components are imported products, with long continuous operation, stability, safety, reliability and so on

(2)Inlet humidity sensor

(3)Use a humidity sensor operating in a high temperature condition to avoid the trouble of frequent changes of wet and dry bulb and wet belt

  Drug stability test chamber-UV   Programmable touch screen controller (in the model with "P" as standard)

(1)  With large screen touch screen, the screen is easy to operate and easy to edit

(2)  The controller interface design English available instant operation graph by the screen display.

(3)  It has the capacity of 100 sets of programs, 1000 segments, 999 steps, and each time the maximum is 99 hours and 59 minutes

(4)  After the data and test conditions are input, the controller has the function of screen locking and stops the human touch

(5)  With p.i.d automatic calculation function, the temperature and humidity change conditions can be corrected immediately, and the temperature and humidity control can be more precise and stable

(6) With RS-232 or RS-485 communication interface, you can design programs on the computer, monitor the test process, and the implementation of switching machines and other functions

   Drug stability test chamber-UV  Record and fault diagnosis display

(1) When the test case fails, the dynamic display will have fault information, and the test box operation fault is clear at a glance

(2) It can connect printer or 485 communication interface, record temperature and time curve with computer and printer, and provide strong guarantee for data storage and playback in test process

   Drug stability test chamber-UV  Wireless alarm system (SMS alarm system)

(1) The use of Drug stability test chamber-UV if not at the scene, when the equipment failure, system timely fault signal acquisition, send text messages through the first time to the designated mobile phone receiving personnel, to ensure timely troubleshooting, recovery test, to avoid losses

  Drug stability test chamber-UV   Safety function

(1)  Independent temperature alarm system, sound and light alarm, prompt operator to ensure the safe operation of the experiment without accidents

(2)  Low or high temperature and over temperature alarm, high humidity and low alarm

(3)  Standard lockable doors: avoid accidental door opening during testing, resulting in UV light damage test personnel

(4)  The user control panel with password protection can be set up to avoid incorrect operation by non experimental personnel

(5)  Accelerated test: 40 - 2 Deg. C / 75%rh + 5%rh, or 30 - 1 Deg. C / 60%rh + 5%rh for 180 days

(6)  Long term test: 25 - 2 Deg. C / 60%rh + 5%rh, or 30 - 2 Deg. C / 60%rh + 5%rh for 365 days

(7)  Glare test: 4500 + 500lx 10 days

(8)  Meet ICH Q1b irradiation requirements: total illumination over 1.2 * 106 lux.hr, near UV energy is larger than 200w.hr/m 2

(9)  Light and UV irradiation experiments can be completed simultaneously

  5. Drug stability test chamber-UV Technical Parameters



Technial Model	SM-LHH-150GSD-UV	SM-LHH-250GSD-UV	SM-LHH-500GSD-UV	SM-LHH-800GSD-UV	SM-LHH-1000GSD-UV	SM-LHH-150GP-UV
	SM-LHH-150GSP-UV	SM-LHH-250GSP-UV	SM-LHH-500GSP-UV	SM-LHH-800GSP-UV	SM-LHH-1000GSP-UV	SM-LHH-250GP-UV
					SM-LHH-1500GSP-UV	SM-LHH-400GP-UV
Temperature  control range	without light：0~65℃ with light：10~50℃
Temperature  fluctuation / uniformity	±0.5℃ /±2℃
Humidity  range / deviation	35~95%RH/±3%RH
Illumination  intensity / error	The intensity of ultraviolet light can be adjusted
ultraviolet  spectral range	320~400nm
Conformance  to test standards
	ICH Q1b instructions, cool white fluorescence over 1.2 * 106lux.hr,  near ultraviolet fluorescence was greater than 200 w.hr/m2
lighting source
	Cool white fluorescent lamps (ISO 10977) and UVA near UV fluorescent lamp
Standard  light source
	Cold white light (d656500k), ultraviolet lamp with wavelength range 320-400nm
Refrigeration  system / system
	Two sets of independent, imported, fully closed compressor automatic switching
controller						Programmable liquid  crystal controller
	GSD series: GSP series programmable  LCD controller: programmable touch screen controller
power	AC220V 50HZ			AC380V 50HZ		AC220V 50HZ
volume	150L	250L	500L	800L	1000L/1500L	150L/250L/400L
inner size (mm)	550×405×670	600×500×830	670×725×1020	800×590×1650	1050×590×1650	550×405×670
W×D×H					1550×590×1650	600×500×830
						700×550×1140
outside size(mm)	690×805×1530	740×890×1680	850×1100×1930	1360×890×2000	1610×890×2000	690×805×1530
W×D×H					2110×890×2000	740×890×1680
						950×850×1850
						Door light / top illumination
Illumination mode	Top illumination / box door lighting		to light for upper
safety device
	Compressor overheating protection, fan overheating protection, over temperature protection, compressor over-pressure protection, overload protection, water shortage protection, cable monitoring alarm system
