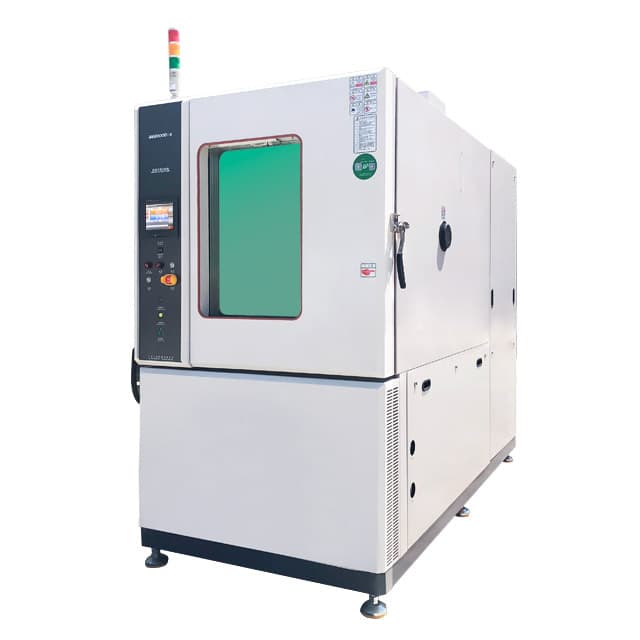

Buồng thử ESS SM-KS-1000-CC Test Chamber

Buồng thử ESS SM-KS-1000-CC Test Chamber

This method can reduce energy consumption by 30% under low temperature conditions. Rapid temperature changes (damp heat) test chamber is suitable for the whole product, parts and materials for high temperature, low temperature, high and low temperature circulating and temperature stress screening (ESS) test, and constant humidity and cyclic damp heat test. This type of machine mainly used to simulate the product in climate conditions, a temperature and humidity conditions or at ambient temperature and humidity conditions, detecting the product features and the adapt change ability. It’s the aviation, automobiles, home appliances, research and other fields necessary test equipment.

Mã: 1208-13430 Danh mục:

ESS Test Chamber advantages:

1.Environmental stress screening (ESS) test chamber Can set the temperature variable rate of the different stress screening
2.Environmental stress screening test chamber Can perform a rapid temperature change (ESS), condensation test, high temperature and humidity test, temperature and humidity cycling test, etc.
3.Meet the requirements of stress screening test for electronic equipment
4.Switching temperature and average temperature these two kinds of test methods
5. Temperature Change Test Chamber Can set a variety of stress screening (fast temperature change rate) 5deg C/min,  10deg C/min,  15deg C/min experimental conditions
6.Meet the requirements of stress screening test for electronic equipment MIL-STD-2164, MIL-344A-4-16, MIL-2134A-19, NABMAT-9492, GJB-1032-90, GJB/Z34-5.1.6, IPC-9701….ETC.
7.Can carry out the two test methods, temperature test and average temperature test
8.With aluminum sheet test machine load capacity (non plastic load)
9.Single machine can perform fast temperature change (ESS), condensation test, high temperature and humidity test, temperature and humidity cycling test, etc.
10.Can screen the sample load with a large number
11.Built in two-way USB2.0 portable storage interface (can copy the test curve and load the test program)
12.Complete real-time test curve analysis shows that no time limit
13.Can be integrated with the E management system to monitor the management system
14.Multi-language selection: Chinese, English, Russian, Korean, Japanese, German  multilingual language switching.
ESS Test Chamber accessories:

1.Standard equipment
Test product load power supply 3 groups
Each side of the left and right side has a 50mm Pin hole
Pin hole silicone plug 2 PCS
Stainless steel sample holder 2 PCS
20L water storage tank 1 PCS
Pure water filter 1 PCS
