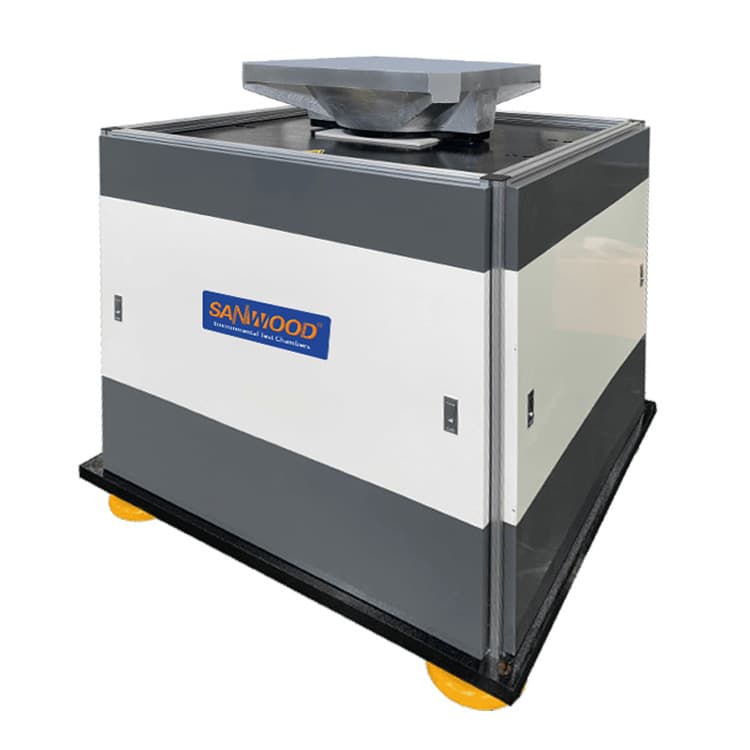

Thiết bị thử rung lắc gia tốc SM04-50 SM04-100 SM04-200 SM04-500 SM04-800 SM04-1000 High Acceleration Shock Test System

Pneumatic Horizontal Shock Test System is specially designed to meet the requirements of military and automotive testing. The system adopts the principle of pneumatic energy storage expansion. By adjusting the inflation pressure, various high-level acceleration tests can be easily implemented in a short stroke.

For the high-G classic shock test, it's equipped with the corresponding shock amplifier to complete high-peak shock test.

Features:

• Windows-based stable control system, full-automatic remote-control interface

• Pneumatic cylinder driving with advantages of large driving force, short accelerating stroke, low cost and pollution free.

• Automatic control of lifting height with high accuracy and good repeatability

• Adopts the high strength and hardness cast aluminum table, which has high first-order resonance frequency, featured with low noise and no clutter

• The most reliable double-brake system: effectively avoids secondary rebound collisions, more securely positioning the table, and more reliably guarantees the safety of the operator.

• Easy installation: the device comes with a base, due to short driving stroke of the pneumatic cylinder, the footprint is small.

Model		SM04－50	SM04－100	SM04－200	SM04－500	SM04－800	SM04－1000
Parameters
Rated Load (kg)		50	100	200	500	800	1000
Table size (mm)		300×300	500×500	800×600	800×800	1000×800	1000×1000
	Half-Sine	10～850	10～700	10～300	10～200
Peak Acc. (G)	Post-Peak	10～200	10～200	10～100	10～60
	Sawtooth
	Trapezoid		15～100		15～60
Pulse Duration (ms)	Half-Sine	0.8～40	1～40	1.5～40	2～40	3～40
	Post-Peak	3～18			6～18
	Sawtooth
	Trapezoid	6～12
Bump Waveform		Half Sine Waveform
Shock Peak Acceleration (G)		5～150
Shock Pulse Duration(ms)		3～30
Overall Dimension (mm)		1000×1000	1100×1100	1100×1100	1100×1100	1400×1400	1500×1500
		×1200	×1500	×1500	×1500	×1600	×1600
Weight (kg)		1000	1800	2500	2800	3800	4000
Max. Frequency Times		100	80		60	50	40
(Times/Min)
Power		AC220V 土10%，50Hz，2kVA
Power requirements for		AC220V±10%, 50Hz, 3kVA or AC380V±10%, 50Hz, 5kVA
The Air Compressor
Air Source Conditions		Air source output pressure is no greater than 1.0Mpa. If there is no air source in the lab, air compressor needs to be
		configured; if there is air source in the lab, and there is a high requirement for   shock frequency times,
		a corresponding
		air tank needs to be configured.
Working Environment		Temperature range 0 ~ 40℃; Humidity ≤ 90% (25℃), non-condense
Standards		MIL-STD-810F        IEC68-2-27
