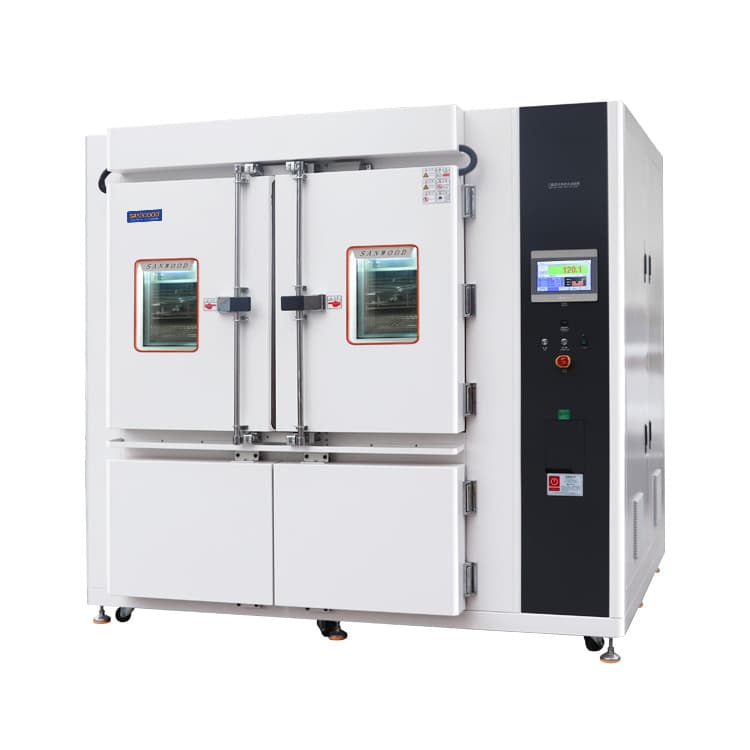

Buồng thử nhiệt độ cao SM-1000-3P-A High Temperature Thermal Shock Chamber
Three zone thermal shock chamber uses the test material structure or composite material to withstand the degree of extreme high temperature and low temperature in a continuous environment in an instant, so as to test the chemical changes or physical damage caused by thermal expansion and contraction in the shortest time. Three zone thermal shock chamber uses the test material structure or composite material to withstand the degree of extreme high temperature and low temperature in a continuous environment in an instant, so as to test the chemical changes or physical damage caused by thermal expansion and contraction in the shortest time.
There are 3 parts: high temperature zone, low temperature zone and test zone; the sample is placed in the dry test zone, and the high temperature zone or low temperature zone during impact.
The temperature of the temperature zone is driven by a high-pressure cylinder into the test zone for temperature shock, so as to achieve the purpose of temperature change.
SM-1000-3P-A：
Inner box size: D750*W1500*H900 (Can be customized)
Carton size: D980*W1680*H2200
Temperature impact range: -40~150℃
Low temperature precooling time:25.0℃～-70.0℃ 1.0～3.0℃/min
High temperature preheating time:25.0℃～200.0℃ 3.0～7.0℃/min
Temperature conversion time:3S
Temperature recovery time: within 10mins
Special features：
1. Modern design, latest modular creation technology ,perfect control power.
2.Automatically defroste after it cycle for 700H or more
3.Patent design initiative observation window to achieve visual effects
4.Color screen 32 control system Ethernet E management, USB data access, APP mobile platform management
5.Programmable load power 4 ON/OFF output control, to protect the products safety
6.Unique air circulation system
7.Unique anti condensation function and over temperature, breezeless, smoke protection function
8.Can expand the network video monitoring function, and data test synchronization
