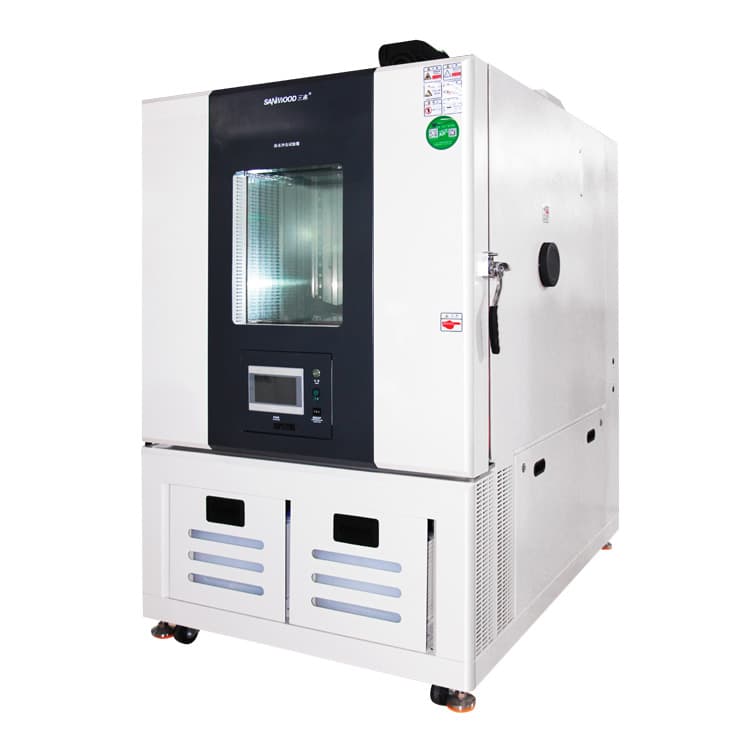

Buồng thử sốc nhiệt nước đá SMC-1000-CC-BC Ice Water Shock Test Chamber
Ice Water Shock Test Chamber mainly simulates the thermal shock caused by ice water in the splash area of vehicles. Simulate driving on water surface in winter when ice water splashes on the system / component. Ice Water Shock Test Chamber. It mainly simulates the thermal shock caused by ice water in the splash area of vehicles. Simulate driving on water surface in winter when ice water splashes on the system / component. It is the reliability test equipment for all kinds of electronic, electrical, electrical, plastic and other raw materials, such as cold resistance, heat resistance, ice water splash resistance test, ice water immersion resistance test and quality control engineering.
Test standard complied: ISO16750-4: 5.4, VW80000.
Main parameters:
Model: SMC-1000-CC-BC;
Inner chamber size W*D*Hmm: 1000*1000*1000 mm;
Inner volume: 1000L;
Cooling mode: air cooling;
Water temperature: （0～+4）℃;
Water flow: 3~4L/3s;
Temperature range: RT+10℃～150℃;
Cooling rate: 25℃～2℃≤60min;
Heating rate: RT+10℃～150℃≤45min;
Distance between nozzle and sample: 325±25mm;
Sample turntable diameter: 600mm;
Turntable bearing: 50kg;
Equipment power: 380V/50Hz, three-phase;
Test sample power: 220V/50Hz.
Safety protection function:
Leakage protection, water shortage protection, short circuit protection, phase sequence protection, thermal overload protection.
