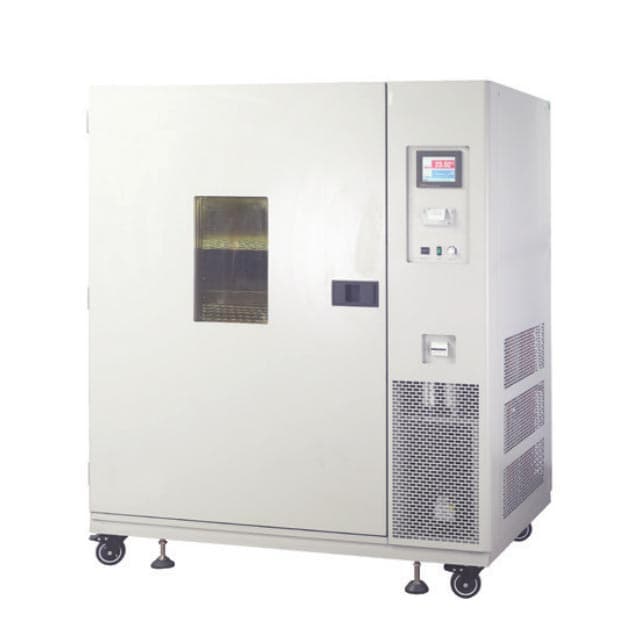

Buồng thử thuốc Test Chamber SM-LHH-500SD SM-LHH-500SDP SM-LHH-800SD SM-LHH-800SDP SM-LHH-1000SD SM-LHH-1000SDP SM-LHH-1500SD SM-LHH-1500SDP

Large Comprehensive Drug Stability Test Chamber Product features:

● Newly fluoride-free design, high efficiency, energy saving.

● Special sterilization stainless steel liner, semicircle design(Four corners), easy cleaning.

● Micro-computer controller, data digital display.(For SD/GSD model)

● LCD touch screen controller, operation condition display(For SD/GSD model)

● Continuous operation: 2 sets imported compressor switch automatically.

● Non-defrosting, continuous operation work normally.

● Imported humidity sensor.

● GSD/GSP series have illumination adjustment function.

Programmable touch screen controller

Security function:

● The warm-up system automatically stop when the door open.

● Automatic control of circulating fan speed, avoiding the volatilization of samples effectively.

● Password Lock Screen, security control.

● Independent temperature warning system; sound-light alarm.

● Temperature deviation alarm, over temperature/ water shortage protection.

● Wire alarm system; (For SD/GSD model)

※Provide 3Q verification and calibration services(Optional choice):

Large Comprehensive Drug Stability Test Chamber Technical parameters:

Model	SM-LHH-500SD	SM-LHH-800SD	SM-LHH-1000SD	SM-LHH-1500SD
	SM-LHH-500SDP	SM-LHH-800SDP	SM-LHH-1000SDP	SM-LHH-1500SDP
Temperature control range	0～65℃
Temperature fluctuation	±0.5℃/±2℃
Humidity control range/	35～95%RH/±3%RH
Humidity deviation
Illumination	None
Refrigerating system	2 sets imported compressor automatically switch
Controller	SD series: Domestic programmable touch screen controller
	SDP series: Imported programmable touch screen controller
Sensor	Temperature: PT100; Humidity: Capacitive sensor
Operation ambient temperature	RT+5～30℃
Power supply	AC220V 50HZ	AC380V 50HZ
Input power	3750W	7150W	7150W	10600W
Volume	500L	800L	1000L	1500L
Liner dimension	670×725×1020	800×590×1650	1050×590×1650	1550×590×1650
(W×D×H mm)
Outside dimension	850×1100×1930	1360×890×2000	1610×890×2000	2110×890×2000
(W×D×H mm)
Loading   Bracket(Standard)	4 pcs
Security system	Over temperature protection, water shortage protection, wire alarm   system
Remarks	1.SD、SDP、GSD、GSP series, embedded printer;
	2.High accuracy digital recorder.
	3.Comprehensive drug stability test chamber standard with illumination   detector.
	4.GSD/GSP series can be installed 2 to 3 layer illumination device.

Large Comprehensive Drug Stability Test Chamber

Model	SM-LHH-500GSD	SM-LHH-800GSD	SM-LHH-1000GSD
	SM-LHH-500GSP	SM-LHH-800GSP	SM-LHH-1000GSP
			SM-LHH-1500GSP
Temperature    control range	Without illumination: 0～65℃;
	With illumination: 10～50℃
Temperature fluctuation	±0.5℃/±2℃
Humidity control range/Humidity deviation	35～95%RH/±3%RH
Illumination	0-6000LX adjustable≤±500LX
Refrigerating system	2 sets imported compressor automatically switch
Controller	GSD series: Domestic programmable touch screen controller
	GSP series: Imported programmable touch screen controller
Sensor	Temperature: PT100; Humidity: Capacitive sensor
Operation ambient temperature	RT+5～30℃
Power supply	AC220V 50HZ	AC380V 50HZ
Controller	3910W	7350W	7350W/10800W
Sensor	500L	800L	1000L/1500L
Operation ambient temperature	670×725×1020	800×590×1650	1050×590×1650
			1550×590×1650
Power supply	850×1100×1930	1360×890×2000	1610×890×2000
			2110×890×2000
Loading   Bracket(Standard)	4 pcs
Security device	Over temperature protection, water shortage protection,
	wire alarm system
Remarks	1.SD、SDP、GSD、GSP series,embedded printer;
	2.High accuracy digital recorder.
	3.Comprehensive drug stability test chamber standard with illumination detector.
	4.GSD/GSP series can be installed 2 to 3 layer illumination device.
