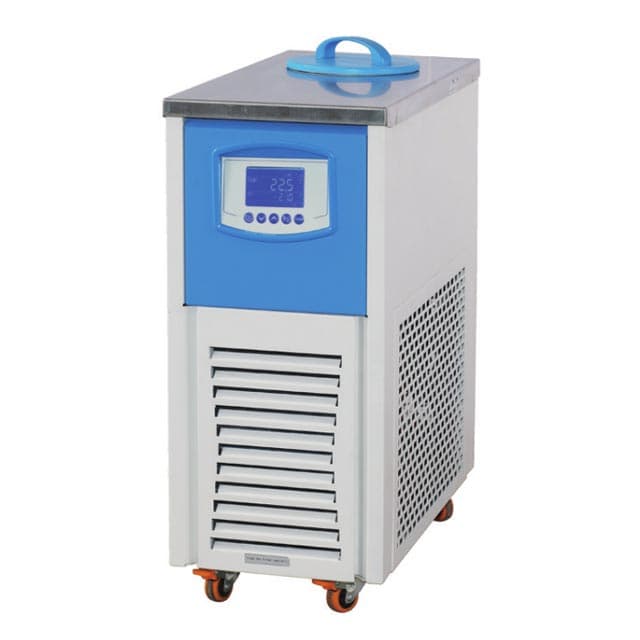

Bộ làm mát tuần hoàn Recirculation Cooler SM-BWR-03A/B/C SM-BWR-05A/B/C SM-BWR-10A/B/C SM-BWR-20A/B/C/ SM-BWR-30A/B/C
The main components of our new generation mini-type recirculation cooler is using the imported famous brand. Accuracy temperature control, low noise, fast cooling speed, high efficiency, energy saving for about 35%.
Product features:
● New design with fluoride-free techniques, bring you healthy life.
● LCD screen, data display, menu operation interface, knob switch, easy observation and operation; PID controller, accuracy temperature control.
● International compressor, low noise, fast cooling speed, high efficiency, energy saving for about 35%.
● One set water recirculator can work with several rotary evaporators.
● Professional water inlet / outlet design, convenient for the pipeline connection and maintenance.
● The volume of working tank is real-time display.
Technical parameters:
| Model | SM-BWR-03A（B/C） | SM-BWR-05A（B/C） | SM-BWR-10A（B/C） | SM-BWR-20A（B/C） | SM-BWR-30A(B/C) | |
| The maximum volume of reservoir（L） | 3 | 5 | 10 | 20 | 30 | |
| Temperature setting range（℃） | A：-20~20℃；B：-30~20℃；C：-40~20℃ | |||||
| Operating ambient temperature（℃） | +5~30℃ | |||||
| Temperature fluctuation（℃） | ±0.5℃ | ±2℃ | ||||
| Refrigerating capacity（kw）(-20℃) | 0.45 | 0.65 | 1 | 1.3 | 3 | |
| Refrigerant(environmental) | R404A | |||||
| Performance | Sensor type | pt100 | ||||
| Controller display | LCD | |||||
| Computer connector | R485(Optional) | |||||
| Security protection | Compressor delay start/ over current /over voltage protection | |||||
| Total Power（W） | 500 | 700 | 1200 | 1650 | 2300 | |
| Power supply | AC220V±10%/50HZ | AC380V±10%/50HZ | ||||
|
Circulating pump Specification |
Pumping Capacity（W） | 10 | 25 | 65 | ||
| Circulating pump maximum flow（L/min） | 8 | 17 | 22 | |||
| Max.pumping head（m） | 1.5 | 2.5 | 4 | |||
| Liquid inlet/outlet pipe diameter | φ16 | φ20 | ||||
| Function | Noise（dB） | ≤ 45 | ≤ 55 | ≤ 65 | ||
| Weight(Kg) | 30 | 50 | 75 | 105 | 120 | |
|
Bath opening/depth φ×H（mm） |
φ180×120 | φ220×180 | φ250×250 | φ300×300 | φ350×350 | |
| Outside dimension including casters(mm) | 250×480×585 | 315×540×625 | 400×590×790 | 430×600×840 | 455×705×975 | |
| Adjustable rotary evaporator | 2L | 2L×2 | 5L×2 | 10L×2 | 10L×2 | |
| Remarks | Customized is acceptable | |||||
