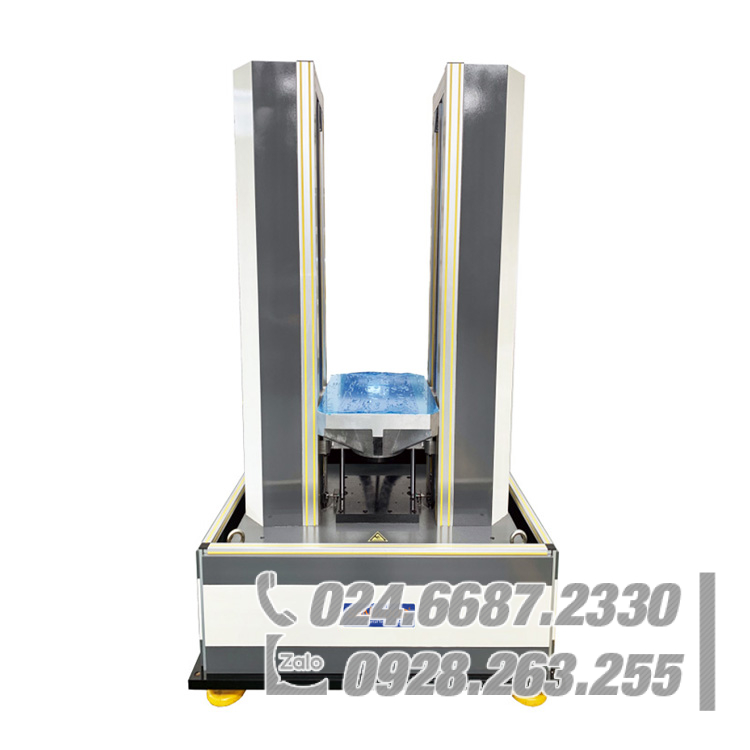

SM02 Pneumatic Vertical Shock Bump Test System is featured with advanced design, high degree of automation and reliability, simple operation and convenient maintenance. The system meets the requirements of both shock and collision test, can perform conventional half-sine wave, post-peak sawtooth wave, square wave and other waveform shock tests.

Mã: 1208-13860 Danh mục:

SM02 Pneumatic Vertical Shock Bump Test System is featured with advanced design, high degree of automation and reliability, simple operation and convenient maintenance. The system meets the requirements of both shock and collision test, can perform conventional half-sine wave, post-peak sawtooth wave, square wave and other waveform shock tests.

       Model SM02－25 SM02－50 SM02－100 SM02－200 SM02－400 SM02－600 SM02－800 SM02－1000 SM02－2000
Parameters
Rated Load (kg) 25 50 100 200 400 600 800 1000 2000
Table Size (mm) 300×300 500×500 600×600 800×600 800×800 1000×800 1000×1000 1200×1200 1500×1200
Peak Acc. (G) Half-Sine 10～850 10～700 10～300 10～200 10～100
Post-Peak 10～200 10～200 10～100 10～60 10～50
Sawtooth
Trapeziod   15～100 15～60 15～50
Pulse Duration (ms) Half-Sine 0.8～40 1～40 1.5～40 2～40 3～40 4～40 6～40
Post-Peak 3～18 6～18
Sawtooth
Trapeziod   6～12
Bump Waveform Half sine wave
Bump Peak Acceleration 50～1500 50～1000 50～800 50～600 50～400
（m/s2）
Bump Pulse Duration (ms) 3～30
Overall Dimension (mm) 1400×1200 1600×1400 1700×1500 1700×1500 1900×1500 1900×1500 2000×1500 1900×1800 2200×1800
×2300 ×2300 ×2300 ×2300 ×2450 ×2450 ×2450 ×2550 ×2550
Weight (kg) 1000 1800 2500 2800 3800 4000 4800 5200 6000
Max. bump Rate 100 80 60 50 40 30 20
 (Times/Min)
Power Requirements for AC220V±10%，50Hz，2kVA
Table
Power AC220V±10%, 50Hz, 3kVA or AC380V±10%, 50Hz, 5kVA
Requirements for
Air Compressor
Air Source Air source output pressure is no greater than 1.0Mpa. If there is no air source in the lab, air compressor needs to be configured; if there is air source in the lab, and there is ahigh requirement for bump frequency times, a corresponding air tank needs to be configured.
Conditions
Working Environment Temperature range 0 ~ 40℃; Humidity ≤ 90% (25℃), non-condense
Standards MIL-STD-810F    IEC68-2-27
