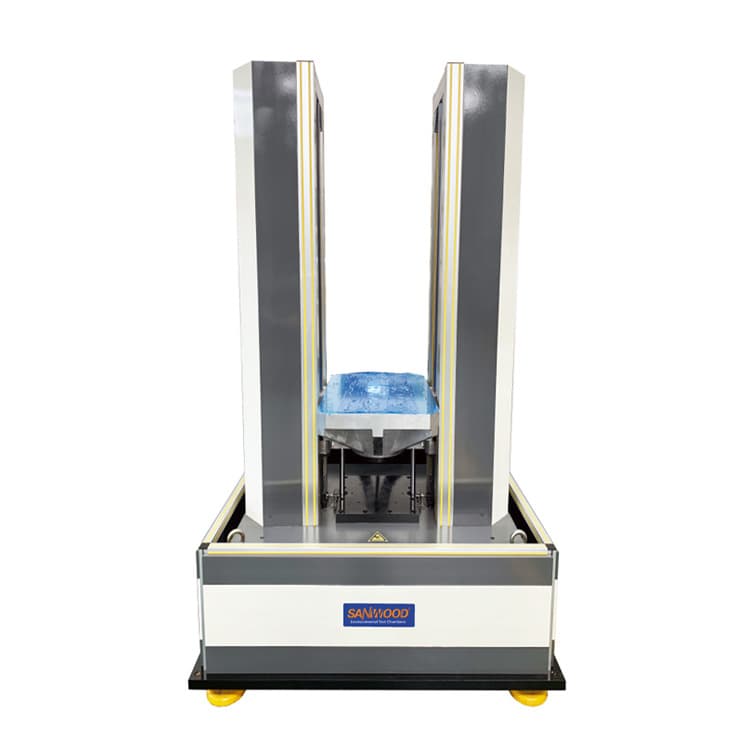

Hệ thống thử rung lắc phương đứng khí nén SM02-25 SM02-50 SM02-100 SM02-200 SM02-400 SM02-600 SM02-800 SM02-1000 SM02-2000 Pneumatic Vertical Shock Bump Test System

SKU:1208-13860

SM02 Pneumatic Vertical Shock Bump Test System is featured with advanced design, high degree of automation and reliability, simple operation and convenient maintenance. The system meets the requirements of both shock and collision test, can perform conventional half-sine wave, post-peak sawtooth wave, square wave and other waveform shock tests.

Model		SM02－25	SM02－50	SM02－100	SM02－200	SM02－400	SM02－600	SM02－800	SM02－1000	SM02－2000
Parameters
Rated Load (kg)		25	50	100	200	400	600	800	1000	2000
Table Size (mm)		300×300	500×500	600×600	800×600	800×800	1000×800	1000×1000	1200×1200	1500×1200
Peak Acc. (G)	Half-Sine	10～850	10～700	10～300	10～200			10～100
	Post-Peak	10～200	10～200	10～100	10～60			10～50
	Sawtooth
	Trapeziod		15～100		15～60			15～50
Pulse Duration (ms)	Half-Sine	0.8～40	1～40	1.5～40	2～40	3～40		4～40		6～40
	Post-Peak	3～18			6～18
	Sawtooth
	Trapeziod		6～12
Bump Waveform		Half sine wave
Bump Peak Acceleration		50～1500	50～1000					50～800	50～600	50～400
（m/s2）
Bump Pulse Duration (ms)		3～30
Overall Dimension (mm)		1400×1200	1600×1400	1700×1500	1700×1500	1900×1500	1900×1500	2000×1500	1900×1800	2200×1800
		×2300	×2300	×2300	×2300	×2450	×2450	×2450	×2550	×2550
Weight (kg)		1000	1800	2500	2800	3800	4000	4800	5200	6000
Max. bump Rate		100	80		60	50	40	30		20
(Times/Min)
Power Requirements for		AC220V±10%，50Hz，2kVA
Table
Power		AC220V±10%, 50Hz, 3kVA or AC380V±10%, 50Hz, 5kVA
Requirements for
Air Compressor
Air Source		Air source output pressure is no greater than 1.0Mpa. If there is no air source in the lab, air compressor needs to be configured; if there is air source in the lab, and there is ahigh requirement for bump frequency times, a corresponding air tank needs to be configured.
Conditions
Working Environment		Temperature range 0 ~ 40℃; Humidity ≤ 90% (25℃), non-condense
Standards		MIL-STD-810F IEC68-2-27
