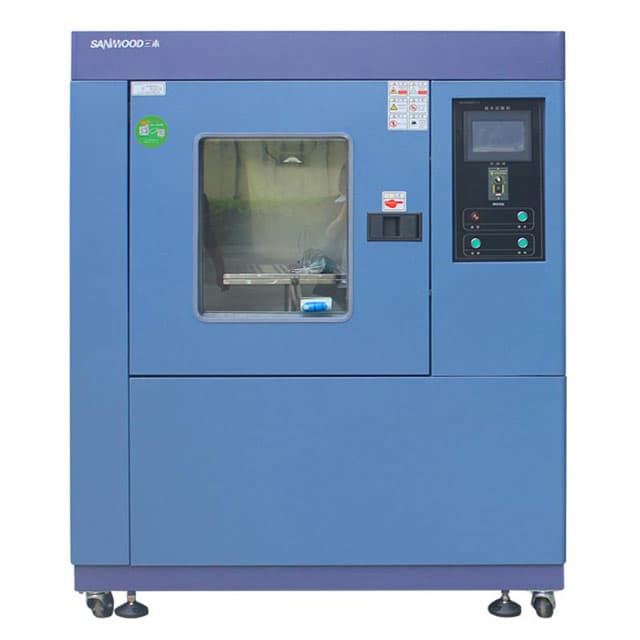

Buồng thử khá năng chịu nước SM-IPX12-1000 Rain Test Chamber IPX-1 IPX-2

Rain Test Chamber (IPX-1/2) Equipment summary:
Rain Test Chamber (IPX-1/2) is used to test anti-rain and waterproof performance for products, the products such as .steam locomotive lamps, wiper performance, waterproof bands, motorcycle instruments, defense industry, navigation systems, missiles, radar cone top, aerospace industry, IEC IP code specifications that need an additional discussion.
Rain Test Chamber (IPX-1/2) Corresponding standard:
Rain test chamber JIS D0203, D5500, SAE J585e, CNS 7138

Rain Test Chamber (IPX-1/2) Application of our rain spray test chamber :
IPX12 rain test chamber Applied to plastics, rubber, paint, coatings, printing ink, paper, pharmaceuticals, food, cosmetics, textiles, auto parts, packaging materials, building materials, electricity and the electrical products; it provide an important testing data for scientific research, product development and quality control.

Rain Test Chamber (IPX-1/2) Technical Reference:

Model		SM-IPX12-1000
Inner chamber material D×W×H（mm)		1000*1000*1000
Outer chamber material D×W×H（mm)		1200*1450*1850
Performance index	Drip mold height	200～800mm（adjustable）
	Rainfall	3～5mm/min
	Drip hole diameter	φ0.4mm
	Testing bench size	500×400（mm）
	Testing bench angle	The horizontal center faces from both sides to 45°
	Lifting mode	up and down
Operation Control System	Controller	00pf">	Time controller	Imported programmable time computer integrated controller
	Water pressure control	Electromagnetic flowmeter
	Observation	Large area visualization toughened glass door
	Water supply system	Water tank, booster pump
	Power supply	AC380V  TN-S
	Safety protection		Leakage, short circuit, motor overheating
