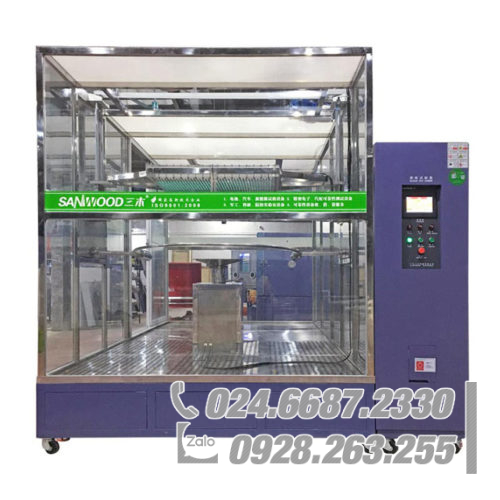

Rain Test Chamber (IPX-5/6) Equipment summary:
Rain Test Chamber (IPX-5/6) is used to test anti-rain and waterproof performance for products, the products such as .steam locomotive lamps, wiper performance, waterproof bands, motorcycle instruments, defense industry, navigation systems, missiles, radar cone top, aerospace industry, IEC IP code specifications that need an additional discussion.
Rain Test Chamber (IPX-5/6) Corresponding standard:
JIS D0203, D5500, SAE J585e, CNS 7138
Application of our Rain Test Chamber (IPX-5/6) :
Applied to plastics, rubber, paint, coatings, printing ink, paper, pharmaceuticals, food, cosmetics, textiles, auto parts, packaging materials, building materials, electricity and the electrical products; it provide an important testing data for scientific research, product development and quality control.
Rain Test Chamber (IPX-5/6) Technical Reference:
| Model | SM-IPX56-1000 | |||
| Testing room Size | 1000(W)*1000(H)*1000(D) | |||
| External Size | 3950(W)*1800(H)*1200(D)（2.5m pipeline is detachable ） | |||
| Power | 2.5(KW) | |||
| Performance Index | IPX5 Nozzle diameter | φ6.3mm | ||
| IPX5 water flow | 12.5L/min | |||
| IPX6 Nozzle diameter | φ12.5mm | |||
| IPX5 water flow | 100L/min | |||
| Flushing distance | 2500mm | |||
| Swing amplitude | ±15°（theoretical value） | |||
| Rotating speed | 1~20r/min can also be used for speed regulation without joints | |||
| Operation Control System | Controller | 00pf”> | Time controller | Imported programmable time computer integrated controller |
| Water pressure control | Electromagnetic flowmeter | |||
| Observation | Large area visualization toughened glass door | |||
| Water supply system | Water tank, booster pump | |||
| Power supply | AC380V TN-S | |||
| Safety protection | Leakage, short circuit, motor overheating | |||
