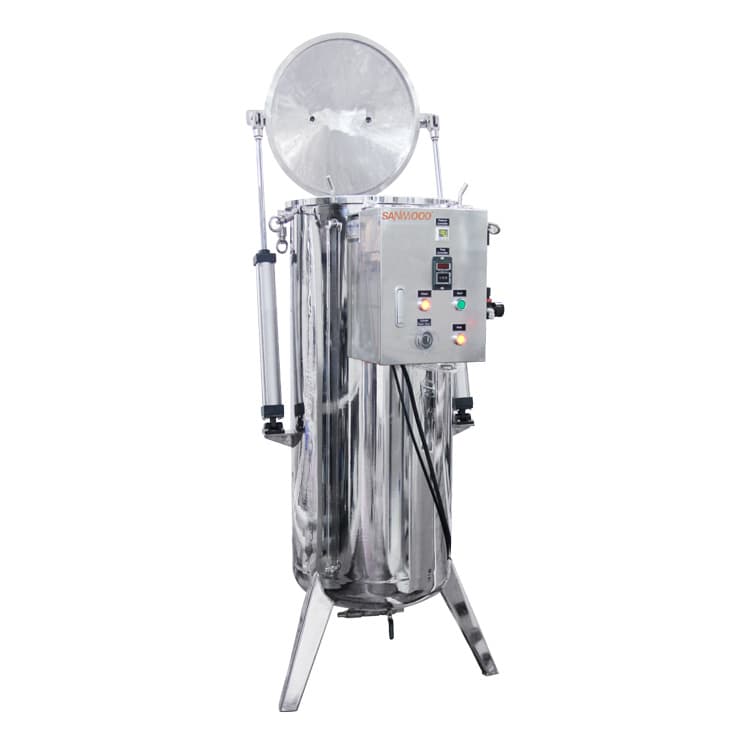

Buồng thử khả năng chịu nước SM-IPX78-500 Rain Test Chamber IPX-7 IPX-8

Rain Test Chamber (IPX-7/8) Equipment summary:

Rain Test Chamber (IPX-7/8) is used to test anti-rain and waterproof performance for products, the products such as .steam locomotive lamps, wiper performance, waterproof bands, motorcycle instruments, defense industry, navigation systems, missiles, radar cone top, aerospace industry, IEC IP code specifications that need an additional discussion.
Rain Test Chamber (IPX-7/8) Corresponding standard:
Water spray test chamberJIS D0203, D5500, SAE J585e, CNS 7138

Application of our Rain Test Chamber (IPX-7/8) :
Rain-proof test chamber Applied to plastics, rubber, paint, coatings, printing ink, paper, pharmaceuticals, food, cosmetics, textiles, auto parts, packaging materials, building materials, electricity and the electrical products; it provide an important testing data for scientific research, product development and quality control.

Rain Test Chamber (IPX-7/8) Technical Reference:

Model		SM-IPX78-500
Testing room sizeΦ×H（mm）		500*1200
Performance index	Pressure range	0 ~ 10kg (simulated 100m water depth test)
	Iner chamber material	Double layer SUS304 stainless steel welded
	Depth indication	Electronic display
Operation Control System	Controller	00pf">	Time controller	Imported programmable time computer integrated controller
	Water pressure control	Electromagnetic flowmeter
	Water supply system	Water tank, booster pump
	Power supply	AC380V  TN-S
	Safety protection		Leakage, short circuit, motor overheating
