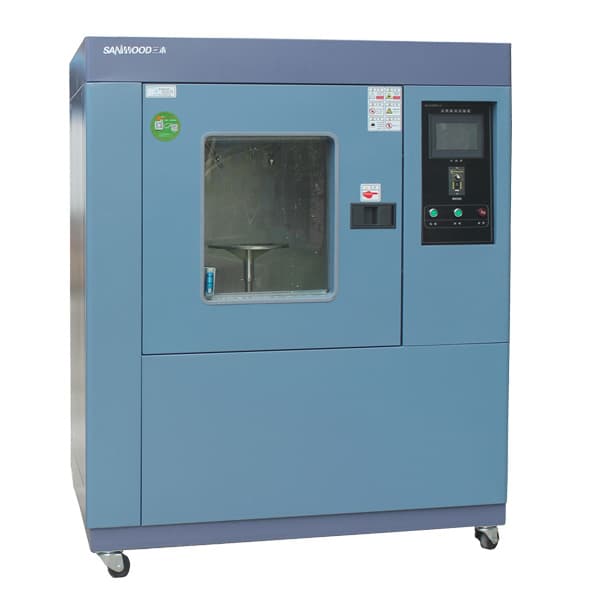

Buồng thử khả năng chịu nước SM-IPX12-1000 Rain Test Chamber

Rain Test Chamber Equipment summary:
rain spray test chamber is used to test anti-rain and waterproof performance for products, the products such as .steam locomotive lamps, wiper performance, waterproof bands, motorcycle instruments, defense industry, navigation systems, missiles, radar cone top, aerospace industry, IEC IP code specifications that need an additional discussion.
Rain Test Chamber Corresponding standard:
JIS D0203, D5500, SAE J585e, CNS 7138
Application of our rain spray test chamber :
Applied to plastics, rubber, paint, coatings, printing ink, paper, pharmaceuticals, food, cosmetics, textiles, auto parts, packaging materials, building materials, electricity and the electrical products; it provide an important testing data for scientific research, product development and quality control.

Rain Test Chamber Technical Reference:

Model		SM-IPX12-1000
Inner chamber material D×W×H（mm)		1000*1000*1000
Outer chamber material D×W×H（mm)		1200*1450*1850
Performance index	Drip mold height	200～800mm（adjustable）
	Rainfall	3～5mm/min
	Drip hole diameter	φ0.4mm
	Testing bench size	500×400（mm）
	Testing bench angle	The horizontal center faces from both sides to 45°
	Lifting mode	up and down
Operation Control System	Controller	5pt; border-color: rgb(242, 242, 242); background: rgb(217, 217, 217);">Time controller	Imported programmable time computer integrated controller
	Water pressure control	Electromagnetic flowmeter
	Observation	Large area visualization toughened glass door
	Water supply system	Water tank, booster pump
	Power supply	AC380V  TN-S
	Safety protection		Leakage, short circuit, motor overheating

Model		SM-IPX34-1000	SM-IPX34-1500
Testing room size		1000(W)*1000(H)*1000(D)	1400(W)*1100(H)*1000(D)
External size		1450(W)*1800(H)*1200(D)	1850(W)*1900(H)*1200(D)
Power		2.5(KW)	2.5(KW)
Performance index	Radius of Water spraying ring	400mm	600mm
	Water pipe diameter	φ18mm
	Nozzle hole diameter	φ0.4mm
	Aperture spacing	50mm
	Swing amplitude	±45°、±60°、±90°、±180°（theoretical value）
	Rotating speed	1r/min can also be used for speed regulation without joints
Operation Control System	Controller	5pt; border-color: rgb(242, 242, 242); background: rgb(217, 217, 217);">Time controller		Imported programmable time computer integrated controller
	Water pressure control	Electromagnetic flowmeter
	Observation	Large area visualization toughened glass door
	Water supply system	Water tank, booster pump
	Power supply	AC380V  TN-S
	Safety protection		Leakage, short circuit, motor overheating



Model		SM-IPX56-1000
Testing room Size		1000(W)*1000(H)*1000(D)
External Size		3950(W)*1800(H)*1200(D)（2.5m pipeline is detachable ）
Power		2.5(KW)
Performance Index	IPX5 Nozzle diameter	φ6.3mm
	IPX5 water flow	12.5L/min
	IPX6 Nozzle diameter	φ12.5mm
	IPX5 water flow	100L/min
	Flushing distance	2500mm
	Swing amplitude	±15°（theoretical value）
	Rotating speed	1~20r/min can also be used for speed regulation without joints
Operation Control System	Controller	5pt; border-color: rgb(242, 242, 242); background: rgb(217, 217, 217);">Time controller	Imported programmable time computer integrated controller
	Water pressure control	Electromagnetic flowmeter
	Observation	Large area visualization toughened glass door
	Water supply system	Water tank, booster pump
	Power supply	AC380V  TN-S
	Safety protection		Leakage, short circuit, motor overheating



Model		SM-IPX78-500
Testing room sizeΦ×H（mm）		500*1200
Performance index	Pressure range	0 ~ 10kg (simulated 100m water depth test)
	Iner chamber material	Double layer SUS304 stainless steel welded
	Depth indication	Electronic display
Operation Control System	Controller	5pt; border-color: rgb(242, 242, 242); background: rgb(217, 217, 217);">Time controller	Imported programmable time computer integrated controller
	Water pressure control	Electromagnetic flowmeter
	Water supply system	Water tank, booster pump
	Power supply	AC380V  TN-S
	Safety protection		Leakage, short circuit, motor overheating

Model		SM-IPX9K-1000
Testing room size		1000(W)*1080(H)*1050(D)
External size		1500(W)*1950(H)*1250(D)
Power		2.5(KW)
Performance index	Test bench area	400mm
	Water surface temperature	80±5.0℃
	Flow	14~16L/min
	Pressure	8000~10000kpa
	Angle	The nozzles are distributed at 0°, 30°, 60°, 90°counter clockwise
	Rotating speed	1~20r/min can also be used for speed regulation without joints
Operation Control System	Controller	5pt; border-color: rgb(242, 242, 242); background: rgb(217, 217, 217);">Time controller	Imported programmable time computer integrated controller
	Water pressure control	Electromagnetic flowmeter
	Observation	Large area visualization toughened glass door
	Water supply system	Water tank, booster pump
	Power supply	AC380V  TN-S
	Safety protection		Leakage, short circuit, motor overheating
