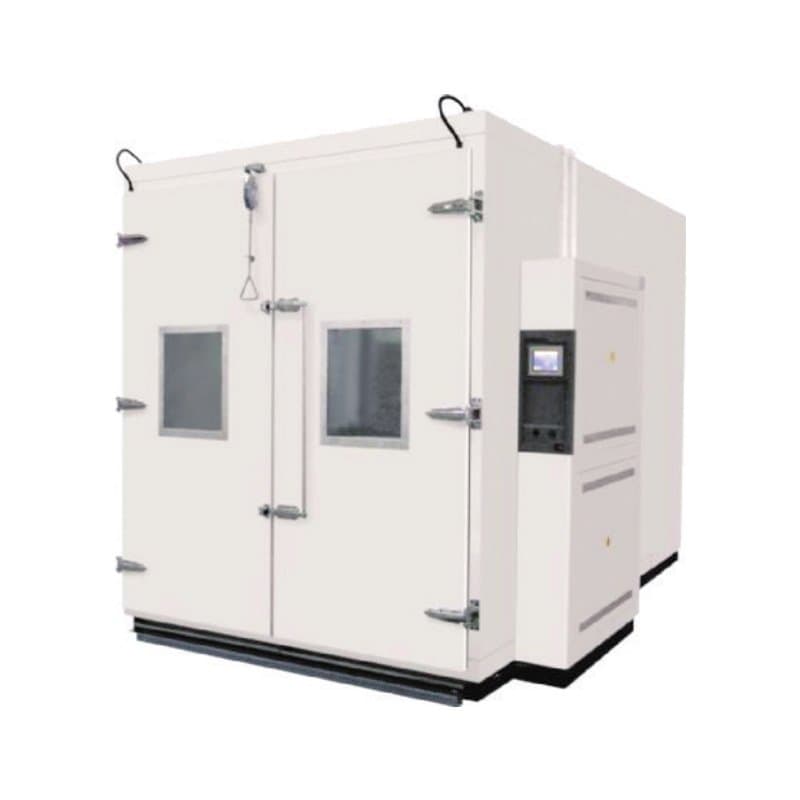

Buồng thử thuốc Walk-in drug stability test chamber SM- LHH- series

1. Product  name: Walk-in drug stability test chamber

2. product model :  SM- LHH- series

3.Walk-in drug stability test chamber Applications:

 (1) The scientific method to create a batch of drug failure evaluation for a long time and stable temperature, humidity and light environment for pharmaceutical enterprises to accelerate drug test, long-term test, high humidity test, is the best choice for large quantities of drug storage and stability tests of large pharmaceutical companies, convenient bulk drug for long-term resistance to humidity cycling test.

4. Walk-in drug stability test chamber product features：

(1)  Import touch type color LCD operating panel, switch in English, 100 programs for users to set / save, display all kinds of running data
(2) It adopts tmhm balanced temperature regulation and humidity control method. It has stable operation, temperature control, humidity control, accurate and safe and reliable
(3) Unique air circulation system, ensure the temperature and humidity distribution in the laboratory is even
(4)  Perfect safety protection device to ensure the operation of products more safe and reliable
(5) Data recording and fault diagnosis display, when the test box failure, dynamic display will appear fault information. Can be connected to a printer or a 485 communication interface, computer software running real-time record of temperature and humidity time curve, provide a strong guarantee for the test data storage and playback.
(6) The anti lock device can be safely in and out of the test room

5.  Walk-in drug stability test chamber Technical Parameters

model		SM-LHH-series
inner size		2cube-250 cube（Customized as required）
performance	system	（BTHC）
	temperature range	0～65℃
	humidity range	40～95%RH(Install dehumidification device, humidity up to 20%rh）
	temperature fluctuation	±0.5℃
	temperature departure	≤±2.0℃
	Humidity deviation	±3.0%RH
	heating-up time	1～2℃/min
	temperature fall time	0.5～1℃/min
	Cooling system	Dual compressor refrigeration dual system
controller system	temperature and humidity controller	Color LCD touch screen display
	Operation interface	liquid-crystal display
	workings	Fixed value operation, program operation
	resolution ratio	±1%RHTemperature: + 0.1 DEG C, humidity: + 1%rh
	import	PT100    Temperature: PT100 humidity: capacitive humidity sensor
	control method;	pid control
	communication function	RS-485、RS-232C
power		AC380  50HZ
