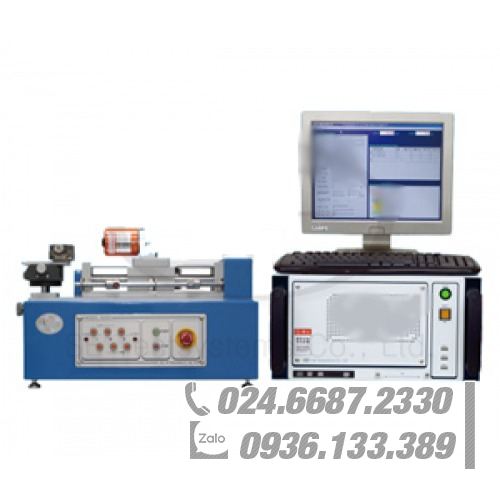

Máy kiểm tra kéo, nén, giãn, đẩy theo phương ngang 3205s / Auto Horizontal Test Stand 3205S

Máy kiểm tra kéo, nén, giãn, đẩy theo phương ngang 3205s / Auto Horizontal Test Stand 3205S

For tension, compression , inserting and pulling test for all kinds of products 3205S is horizontal type load tester and specialized in slippery track of slide phone testing , Mainly working in “Thrust Limited “ testing and advantage of determined if Thrust testing still working perfectly for a period.

Mã sản phẩm: 1211-10040 Danh mục:

For tension, compression , inserting and pulling test for all kinds of products 3205S is horizontal type load tester and specialized in slippery track of slide phone testing , Mainly working in “Thrust Limited “ testing and advantage of determined if Thrust testing still working perfectly for a period.

Features
●　Servo motor driving make precise testing.
●　All test conditions are stored and programmed by computer.
●　Correctly test each thrust variation of load. (Load-distance curve)
●　Concurrent display of the 「Load-distance curve」 & Life curve.
●　Direct printout and storage of the「load-distance curve」and test report .
●　Test report can be transferred to Excel file for editing or output through Network .
●　Stop by limited value. (Machine will stop once the figures are over the upper/lower values).
●　Cross-shape cursor can trace the track of each test diagram to determine the corresponding value of load and displacement .(Minimum resolution is 0.01mm)
●　Test items :Max load value, peak value, bottom value , the load value of distance,the distance value of load, resistance value
●　Load cells over-load protection against damage .
●　 Reel type curve diagram for reading easily .
●　 Load can be N,lb,kg selected .
●　2kgf ,5kgf, 20kgf, 50kgf load cells for option .
●　Steel structure with servo motor , created high accuracy , long lasting.
Model 3205S
Capacity 2kgf,5kgf,20kgf,50kgf
Resolution 0.1gf , 1gf , 1gf , 10gf
Accuracy 0.2%FS
Max. Stroke 150mm
Speed Range 1-200mm/min
Transmission Ball Screw
Drive Motor Servo Motor
Dimension 510 (W)×250 (D)×350 (H)mm
Weight 24kg
Power AC 200V
