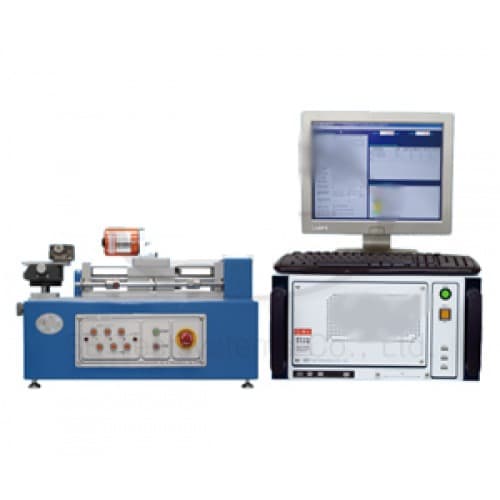

Máy kiểm tra kéo, nén, giãn, đẩy theo phương ngang 3205s / Auto Horizontal Test Stand 3205S

SKU:1211-10040

For tension, compression , inserting and pulling test for all kinds of products 3205S is horizontal type load tester and specialized in slippery track of slide phone testing , Mainly working in “Thrust Limited “ testing and advantage of determined if Thrust testing still working perfectly for a period.

Features

●　Servo motor driving make precise testing.

●　All test conditions are stored and programmed by computer.

●　Correctly test each thrust variation of load. (Load-distance curve)

●　Concurrent display of the 「Load-distance curve」 & Life curve.

●　Direct printout and storage of the「load-distance curve」and test report .

●　Test report can be transferred to Excel file for editing or output through Network .

●　Stop by limited value. (Machine will stop once the figures are over the upper/lower values).

●　Cross-shape cursor can trace the track of each test diagram to determine the corresponding value of load and displacement .(Minimum resolution is 0.01mm)

●　Test items :Max load value, peak value, bottom value , the load value of distance,the distance value of load, resistance value

●　Load cells over-load protection against damage .

●　 Reel type curve diagram for reading easily .

●　 Load can be N,lb,kg selected .

●　2kgf ,5kgf, 20kgf, 50kgf load cells for option .

●　Steel structure with servo motor , created high accuracy , long lasting.


Model	3205S
Capacity	2kgf,5kgf,20kgf,50kgf
Resolution	0.1gf , 1gf , 1gf , 10gf
Accuracy	0.2%FS
Max. Stroke	150mm
Speed Range	1-200mm/min
Transmission	Ball Screw
Drive Motor	Servo Motor
Dimension	510 (W)×250 (D)×350 (H)mm
Weight	24kg
Power	AC 200V
