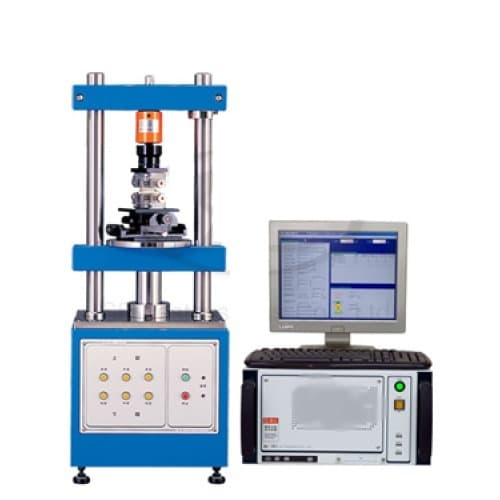

Máy kiểm tra kéo nén tự động 1220S, 1220HS, 1220WS / Auto Inserting Pulling Force (Tension, Compression) Tester 1220S, 1220HS, 1220WS

※ Pulling Load-distance Curve：

●Directly display and store each displacement and load value variation. (X is distance, Y is load)

●Cross-shape cursor can trace the track of each test diagram, so as to determine the distance values of load and displacement. Minimum resolution is 0.01mm (0.001mm)

●The curve can be stored in the computer for enlarging and shrinking at any time. Besides, “N” number of curve diagrams can also be designated on single A4 size sheet.

●Reel type curve diagram for browsing easily.

●Concurrent display of the 「Load-distance curve」&「Life curve」.

※ Life Curve：

●The title can be revised at any time.

●The max. min and average value of each curve can be displayed on the report.

●Display the specified lines of the upper and lower limited on the report .

●Concurrently display many sets of Life Curves.

※ Report：

●The test report can be produced automatically (A4 size), transferred to different file (like Excel) or output through network.

●The title can be revised at any time.

●Auto-calculation: Max. value, Min. value average values, difference value, standard difference value , and engineer capacity index.

●The specified upper and lower limit values can be entered for determining OK or NG.

This system can test inserting pulling (pull or compress) force and contact impedance value at the same time. In addition, it will output the active impedance variation on 「Load-distance curve」. High speed test function (100times/sec) for more accurate values. For the Battery Connectors testing of cell phone and PDA. Load, distance and resistance value variation curve . Distance-load or distance-resistance value setting. (Multipoint function) Distance for max. resistance value. (Multipoint function) Single test and life test are available. Output the「Load-distance resistance life curve」.
