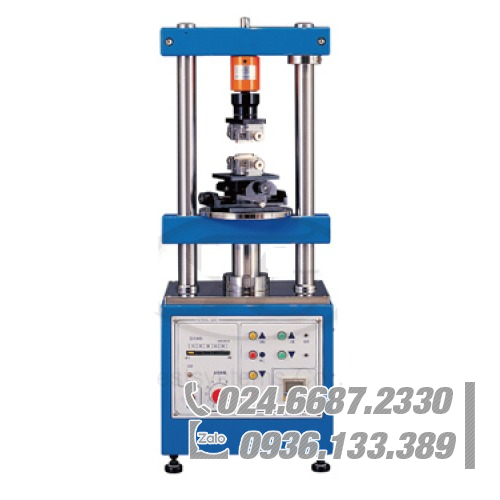

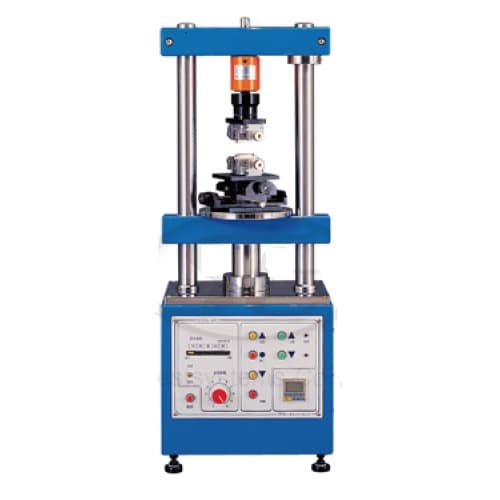

Máy kiểm tra lực ép tự động 1220 / Auto Tension Compression Tester 1220

Máy kiểm tra lực ép tự động 1220 / Auto Tension Compression Tester 1220

This model can overcome the clamp problem of connectors and perform automaticalignment of male and female connectors during the test without single-sided aligning defect.
This machine can be used in the automatic test of inserting and pulling force for all kinds of connectors. When working with the patented automatic core-finding device, completely accurate inserting /pulling force test can be executed. Concurrent display of each inserting and pulling force (peak value), and printing automatically.

Mã: 1211-10070 Danh mục:

This model can overcome the clamp problem of connectors and perform automaticalignment of male and female connectors during the test without single-sided aligning defect.

This machine can be used in the automatic test of inserting and pulling force for all kinds of connectors. When working with the patented automatic core-finding device, completely accurate inserting /pulling force test can be executed. Concurrent display of each inserting and pulling force (peak value), and printing automatically.

Features
●　Connector entire row inserting /pulling test.
●　Connector single pin and plastic retention force test.
●　General compressing, stretch destruction test
Model 1220
Units 5kgf,20kgf,50kgf
Max. Stroke 150mm
X,Y movement 0-75mm
Speed range 10-100mm/min
Transmission Ball Screw
Dimension 360 (W)×260 (D)×940 (H)mm
Weight 70kg
Power AC 110V or 220V
