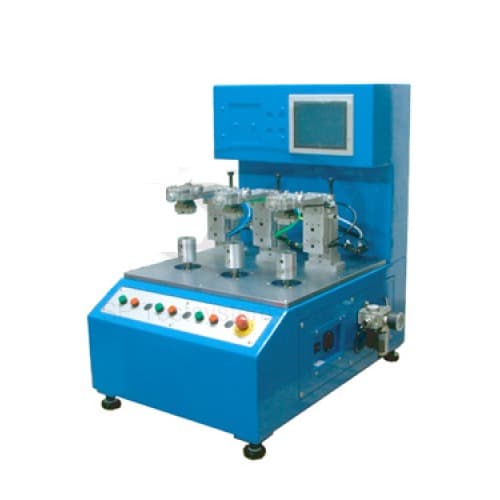

Máy kiểm tra độ bền đóng gập của thiết bị điện tử 3 trục XYZ 2503T / Auto Three Axes (XYZ) Hinge Running-in Machine 2503T

SKU:1211-10080

Developed by Torque value testing in earlier period .
3 sets Running-in systems for 3 kinds of hinges pre-shaking , and working with auto core-find device in different angle,times and speed required.
Touch input monitor , origin point calibrated , 20 sets conditions for option.

Developed by Torque value testing in earlier period .

3 sets Running-in systems for 3 kinds of hinges pre-shaking , and working with auto core-find device in different angle,times and speed required.

Touch input monitor , origin point calibrated , 20 sets conditions for option.

Features

●　Max. Torque 50kgf-cm

●　Servo motor transmission system with touch paned and easily operation.

●　Closed-loop controlled system ,making accurate angle , and auto memorized upon power off .

●　Fixture auto up-down function, operator just in charge of replacing working piece.

●　 Fine tuning aims at center of fixture making easy operation in each axis .

●　Auto core-find device in fixed end without centrifugal force problem

●　3 sets hinges Running-in system can work together at the same time .

●　Different conditions set & stored in controller for option .

●　Auto core-find device applicable of test piece setting & testing .

●　Touch monitor with small space & convenience .

●　Available of all kinds of test pieces with memorize function for 20 sets .

●　Storage & setting of testing conditions operated by controller picture .


Model	2503T
Max. Rotating Angle	3600°
Max. Rotating Speed	300rpm
Z Max. stroke	50mm
Concurrent Testing No.	3 sets
Storage No.	20sets testing conditions
LCD operation Panel	LCD touch panel
Dimension	430 (W)×630 (D)×670 (H)mm
Weight	35kg
Power	AC 110V or 220V
