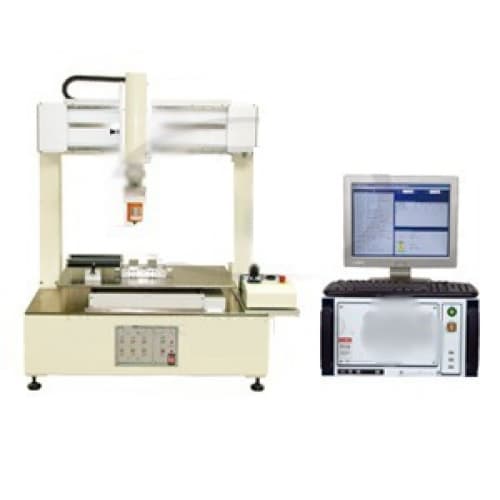

Máy kiểm tra lực nén ép 3 trục tự động 9305S, 9505S / Auto Three Axes (XYZ) Load Tester 9305S, 9505S

SKU:1211-10090

For all kinds of compression tests.
Coordinates setting , automatic stroke test , and value storage.
Windows Chinese (English) version with data storage function (test conditions, load-distance curve, life curve and test report…etc.)

For all kinds of compression tests.

Coordinates setting , automatic stroke test , and value storage.

Windows Chinese (English) version with data storage function (test conditions, load-distance curve, life curve and test report…etc.)

Optional Accessories

●　Test of the load and displacement values for the conduction point.

●　The impedance value setting of the conduction point.

●　Active impedance testing system.

Test items

●　Auto multipoint testing for regular products.

●　Push-key (keyboard) curve testing . (Auto. Multipoint displacement)

●　LCD press-resistant test. (Auto. Multipoint displacement)

●　Compression life test. (Auto. Multipoint displacement)

Features

●　Input X,Y coordinate randomly , and the tester will move automatically.

●　Max. stroke and loading value input for testing automatically.

●　Machine will pause or return while loading value reaches setting.

●　Machine will pause or return while stroke value reaches setting.

●　Test and output the diagrams of each stroke (0.01mm) and loading.

●　Cross-shape cursor can trace the track of each test diagram, so as to determine the corresponding values of load and displacement. Minimum resolution is 0.01mm.

●　Direct printout and storage. (Load-displacement curve , life curve and test report.)

●　Data storage in hard disk (without limit.)

●　The test conditions are programmed by computer pictures. (including test load, stroke , speed, frequency, and pause time…etc.)

●　The title of the test report can be revised at any time. (either in Chinese or in English)

●　The test report can be transferred to Excel file for editing or output through Network.


Model	9305S	9505S
Units	5kgf,20kgf,50kgf
Resolution	1gf , 1gf , 10gf
Z axis stroke	100mm,200mm(Opition)
Z axis Min.Stroke	0.01mm,0.001mm(Opition)
Speed range	1-200mm/min
X axis stroke	300mm	500mm
Y axis stroke	200mm	300mm
Transmission	Ball Screw
Drive motor	Servo motor (3 axes)
Dimension	670 (W)×460 (D)×1000 (H)mm	900 (W)×6200(D)×1000 (H)mm
Weight	120kg	170kg
Power	AC 100V or 200V
