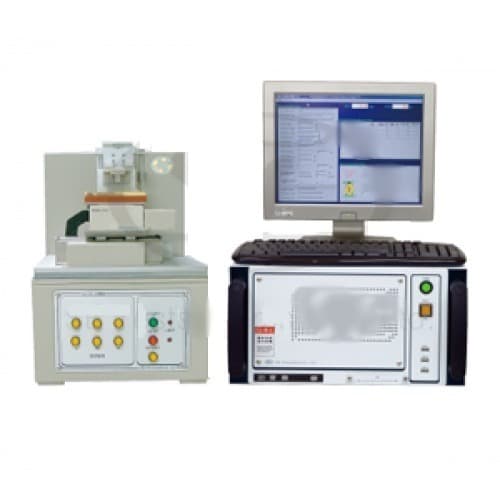

Máy kiểm tra tải 3 trục (XYZ) 9106S / Auto Three Axes (XYZ) Load Tester (PogoPin Tester) 9106S

SKU:1211-10110

CONCURRENT ACTIVE IMPEDANCE MEASUREMENT (mΩ) (option)
For all kinds of compression tests. Coordinated setting, automatic stroke test, and value storage. Windows Chinese (English) version with data storage function (test conditions, load-distance curve, life curve and test report…etc.)

CONCURRENT ACTIVE IMPEDANCE MEASUREMENT (mΩ) (option)

For all kinds of compression tests. Coordinated setting, automatic stroke test, and value storage. Windows Chinese (English) version with data storage function (test conditions, load-distance curve, life curve and test report…etc.)

Optional Accessories

●　Test of the load and displacement values for the conduction point .

●　The impedance value setting of the conduction point.

●　Active impedance testing system.

Features

●　Input X,Y coordinate randomly , and the tester will move automatically.

●　Max. stroke and loading value input for testing automatically.

●　Machine will pause or return while loading value reaches setting.

●　Machine will pause or return while stroke value reaches setting .

●　Test and output the diagrams of each stroke (0.01mm) and loading.

●　Cross-shape cursor can trace the track of each test diagram , so as to determine the corresponding values of load and displacement.

●　Minimum resolution is 0.01mm.

●　Direct printout and storage. (Load-displacement curve, life curve and test report.)

●　Data storage in hard disk (without limit ).

●　The test conditions are programmed by computer pictures. (including test load, stroke , speed, frequency, and pause time …etc.)

●　The title of the test report can be revised at any time. (either in Chinese or in English)

●　The test report can be transferred to Excel file for editing or output through Network.


Model	9106S
Load capacity	2kgf
Load Resolution	0.1gf
Load Accuracy	± 0.2% FS
Z axis stroke	100mm(Accuracy±0.03)
Z resolution	0.01mm,0.001mm(Option)
Z speed range	1-200mm/min
X axis stroke	100mm(Accuracy±0.03)
X resolution	0.01mm
Y axis stroke	60mm(Accuracy±0.03)
Y resolution	0.01mm
X-Y stroke	20mm/sec
Max. square measure	100X60mm
Impedance	0.1mΩ-3000Ω(four-wire )
Impedance resolution	0.1mΩ
Impedance accuracy	1mΩ(four-wire )
Pressure limited	20kg
Holding table size	120X120mm
Power	AC 110V or 220V
Dimension	320 (W)×530 (D)×500 (H)mm
Controller dimension	440 (W)×350 (D)×235 (H)mm
