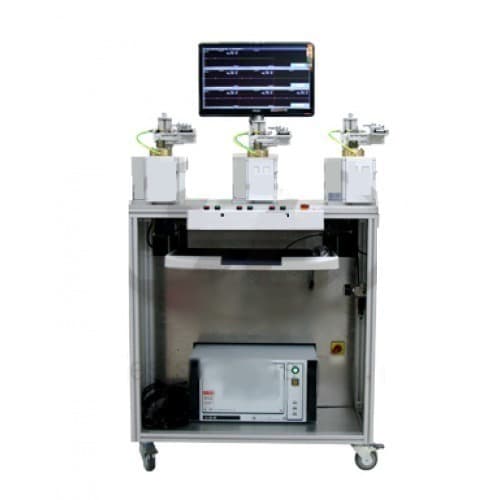

Máy kiểm tra momen xoắn bản lề tự động 2323S, 2323NS, 2323J / Auto Three Hinges Torque Tester

SKU:1211-10120

This model will make hinges swiveling in primary , and will test once torque value steady.
Successfully combined running-in & Torque testing machine. Multi-function made more efficient in related testing of a same workstation. Three axes function saves labor power & time in individually testing.

This model will make hinges swiveling in primary , and will test once torque value steady.

Successfully combined running-in & Torque testing machine. Multi-function made more efficient in related testing of a same workstation. Three axes function saves labor power & time in individually testing.

Features

●　Diagrams storage and printing. (torque-angle curve and test report)

●　Data storage of hard disk. (without limit)

●　The test conditions are programmed by computer picture. (including angle , speed , frequency and pause time…etc.)

●　The title of the test report can be revised at any time. (either in Chinese or in English)

●　Test report can be transferred to Excel file for editing.

●　Record each torque-angle curve.

●　Concurrent display torque-angle curve.

●　Test three working piece individually.


Model	2323S / 2323NS	2323J
Capacity	20kgf‧cm	15kgf‧cm
Resolution	0.01kgf‧cm( Accuracy0.3%FS)	No Torque Test
Test angle	Unlimited	Unlimited
Min. Analysis	0.1°	0.1°
Speed range	10-180°/sen	10-360°/sen
Nuts Adjustment	No/Yes	/
Drive motor	Servo motor	Servo motor
Dimension	810 (W)×610 (D)×1600 (H)mm	/
Weight	110kg	/
Power	AC 220V	AC 220V
