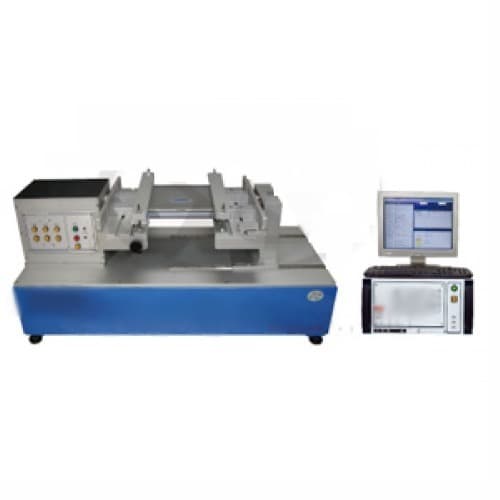

Máy kiểm tra độ bền xoắn tự động 4220S / Auto Torsion Durability Tester 4220S

SKU:1211-10130

This model is applicable on torsion durability test for finished notebook products.
With collocation of Windows setting operation platform make it easy and convenient to use.

This model is applicable on torsion durability test for finished notebook products.

With collocation of Windows setting operation platform make it easy and convenient to use.

Function & Explanation

●　Capable to perform test base on specific torque force. (When reaches specific torque force then can pause base on specific inputted time)

●　Capable to perform test base on specific angle degree. (When reaches specific angle degree then can pause base on specific inputted time)

●　Test Load Type: Positive Torque, Negative Torque, Positive & Negative Torque.

●　Test Direction : Clockwise Forward, Clockwise Forward + Backward. Reverse Forward, Reverse Clockwise Forward + Backward. Clockwise Forward + Backward + Forward.

●　Max. Torque Load Range: 200kgf-cm.

●　Min. Torque Load Resolution: 0.01kgf-cm.

●　Loading Element: 200kgf-cm (Adopt loading element to test torque value).

●　Min. Angle Resolution: 0.01 degree.

●　Max. Test Angle: ± 20 Degree.

●　Motor Drive: Servo motor (Offers outstanding precision for torque test).

●　Height adjustment thru corresponding screw holes located at its right and left.

●　Max. inner steady base dimension: 520mm (Prompt central positioning device)

●　Control System: Industrial computer (Include LCD monitor).

●　Test conditions are programmed thru computer pictures, convenient and fast. (Including load value, angle, speed, cycle (6 digits), pause time, and etc)

●　Directly test torque load variation of each angles (Torque - angle variation curve diagram).

●　Directly record, store, and display torque load and angle curve variation diagram of each cycle.

●　Selectable units of N, lb, g, and kg.

●　Twin auto protection from both software and hardware to avoid overload of load cell.


Model	4220S
Max. Torque Load Range	200kgf‧cm
Min. Torque Load Resolution	0.01kgf‧cm
Min. Angle Resolution	0.01degrees
Test Speed Range	1-1000〞/min
Drive Motor	Servo Motor
Max. Test Angle	±20degree
Power	1250 (W)×600 (D)×500 (H)mm
Dimension	100kg
Weight	AC 220V
