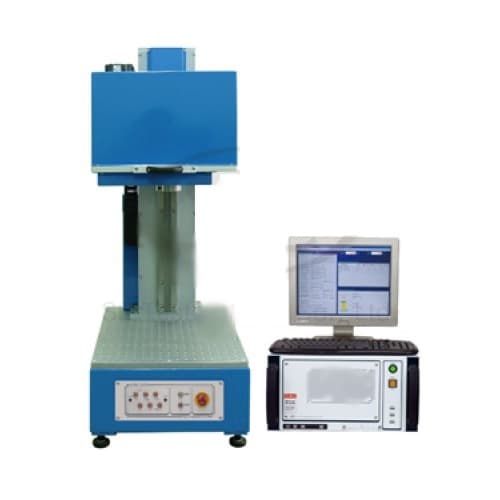

Máy kiểm tra độ bền xoắn tự động 2290s / Auto Torsion Durability Tester 2290S

Specialized in screws torsion & compression /Bigger working piece torsion testing/ Automatically testing axis up-down

Suitable for all kinds of screws, mass torque and bigger working piece torsion testing.

Automatically up-down facility, working with high accuracy and long life.

With WINDOWS Chinese (English) version software, easy to operate and learn

Feature

●　Servo motor makes accurate torque testing. ●　Testing conditions are programmed through computer. ●　Correctly test each torque value (Torque-angle curve). ●　Concurrent display of the「Torque-angle curve」&「Life curve」. ●　Direct printout and storage of the「Torque-angle curve」 and test report. ●　Test report can be transferred to Excel file for editing or output through Network. ●　Stop by limited value. (Machine will stop once the figures are over the upper /lower setting value). ●　 Machine will pause or return upon reaching toque value. ●　Test Item: Positive torque, Anti-torque, Positive torque & Anti-torque.

Model	2290S
Capacity	50kgf‧cm,100kgf‧cm
Min. Torque	10kgf‧cm,0.1kgf‧cm
Min. Angle	0.1〞
Max. Angle	Unlimited
Speed range	60-15000〞/min
Drive motor	Servo motor
Dimension	460 (W)×600 (D)×1200 (H)mm
Weight	200kg
Power	AC 110V or 220V
