Máy kiểm tra màn hình trạm LCD 9106TS / Auto Touch Panel (Load-distance-linearity)Tester 9106TS

Máy kiểm tra màn hình trạm LCD 9106TS / Auto Touch Panel (Load-distance-linearity)Tester 9106TS

‧XY direction linearity testing
‧ON-OFF conduction testing
‧Vacuole (height) testing

Mã: 1211-10160 Danh mục:

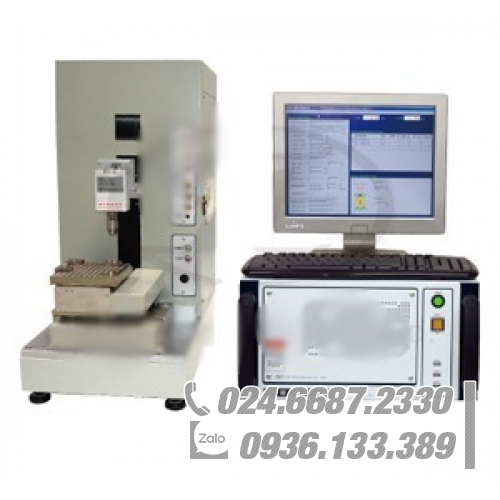

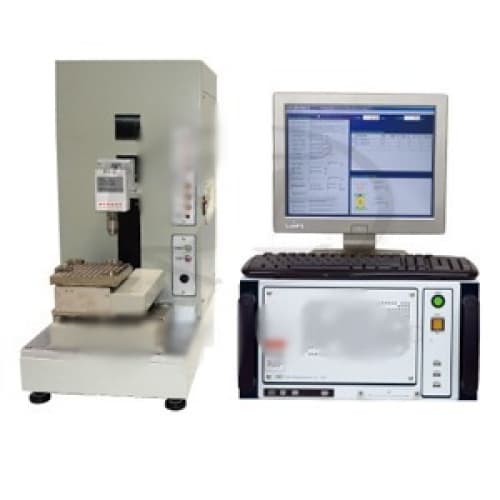

Application of all kinds touch panel of cell phones and PDA 『Load-distance-linearity』 multi-function testing. Machine can work with XY axes in random testing place & get changed of testing panel linearity , even check all electronic circuit before testing.

Window Chinese & English version with data storage function for easy operation. (test conditions, load curve, test result and test report, etc.) and output by Excel editing.

Option
●　Touch panel ON point impedance device
●　Active impedance testing system 101 R
Testing Item
●　Touch panel XY direction linearity measure
●　Touch panel ON point force & stroke testing
●　Touch panel planeness testing (vacuole testing)
●　Push-key load cure testing (multipoint stroke)
●　LCD compression testing (multipoint stroke)
●　Three points bending strength testing
●　Normal multipoint force testing (multipoint stroke)
Feature
●　Input X ,Y coordinate randomly, and tester will move automatically.
●　Max. stroke and loading value input for testing automatically.
●　Machine will pause or return while loading value reaches setting.
●　Machine will pause or return while stroke value reaches setting.
●　Test and output the diagrams of each stroke (0.01mm) and loading.
●　Cross-shape cursor can trace the track of each test diagram , so as to determine the Corresponding values of load and displacement. Minimum resolution is 0.01mm .
●　Direct printout and storage (Load-displacement curve, life curve and test report)
●　Data storage in hard disk . (without limit )
●　The test conditions are programmed by computer pictures . (including test load, stroke , speed,frequency, and pause time….etc.)
●　The title of the test report can be revised at any time .(either in Chinese or in English )
●　The test report can be transferred to Excel file for editing or output through Network.
Model 9106TS
Load capacity 2kgf
Load Resolution 0.1gf
Load Accuracy ± 0.2% FS
Z axis stroke 200mm(Accuracy±0.03)
Z resolution 0.01mm,0.001mm(Option)
Z speed range 1-200mm/min
X axis stroke 100mm(Accuracy±0.03)
X resolution 0.01mm
Y axis stroke 60mm(Accuracy±0.03)
Y resolution 0.01mm
X-Y stroke 20mm/sec
Max. square measure 100X60mm
Impedance 0.1mΩ-3000Ω(four-wire)
Impedance resolution 0.1mΩ
Impedance accuracy 1mΩ以下(four-wire)
Pressure limited 20kg
Holding table size 120X120mm
Power AC 110V or 220V
Dimension 300 (W)×520 (D)×640 (H)
Controller dimension 440 (W)×350 (D)×235 (H)
