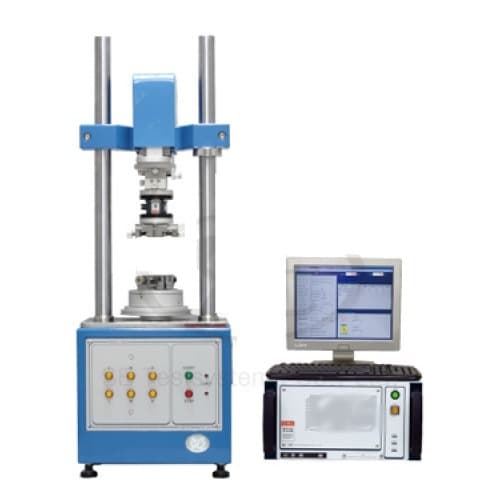

Máy kiểm tra mô-men xoắn tự động 2205S, 2205WS / Automatic Torque Tester 2205S, 2205WS

SKU:1211-10180

For all kinds of products in torque test.
Such as Notebook hinge, cell phone (unity hinge torque and products torque life test ),
LCD monitor base, and turning switch, etc.Windows Chinese software, easy to operate.

For all kinds of products in torque test.

Such as Notebook hinge, cell phone (unity hinge torque and products torque life test ),

LCD monitor base, and turning switch, etc.Windows Chinese software, easy to operate.

Features

●　Driven by servo motor for a high-accuracy torque test .

●　Test conditions are stored and programmed by computer pictures .

●　Directly test the torque value variation of each angle . (torque-angle variation curve).

●　Concurrent display of torque-angle curve and torque extinction curve.

●　Diagram printout and storage (torque-angle curve, torque extinction life curve , test report).

●　The test report can be printout, transferred to other files or output through network .

●　The machine will stop by the limit value setting .

●　Machine will pause or return upon reaching the torque value .

●　Test items: Positive torque, anti-torque , Positive torque and anti-torque

●　Direction testing : Positive go stroke, Positive go stroke + return stroke .

●　Reverse go stroke, reverse go stroke + return stroke .

●　Positive go stroke + Reverse stroke + Positive return stroke.


Model	2205S	2205WS
Column lnterval	200mm	400mm
Capacity	10kgf‧cm , 50kgf ‧cm ,200kgf ‧cm
Min. Torque	1gf‧cm ,10gf‧cm ,10gf‧cm
Min. Angle	0.1 〞
Max. Angle	Unlimited
Speed range	60-15000 〞/min
Drive motor	Servo motor
Dimension	360 (W)×260 (D)×940 (H)mm	560 (W)×360 (D)×140 (H)mm
Weight	60kg	95kg
Power	AC 110V or 220V
