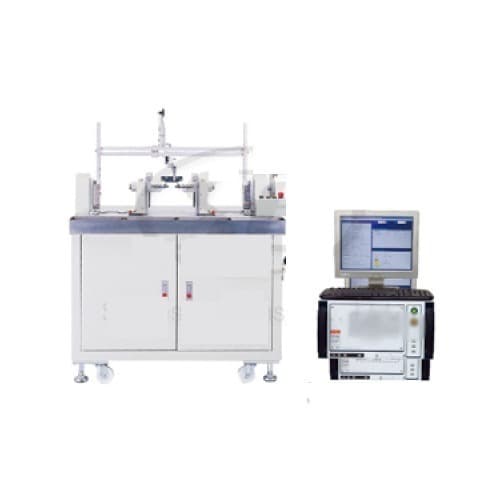

Kiểm tra mô-men xoắn đôi cho màn hình LCD gập 5300DS / Double Torque Tester for Double Hinge LCD monitor 5300DS

SKU:1211-10220

This model is used to measure the torque value of the double hinges for LCD monitor.
It can measure two sets of torque value at one time. It can be used for the unity torque checking of double-hinge or for torque life test. Windows Chinese (English) software , easy to operate.

This model is used to measure the torque value of the double hinges for LCD monitor.

It can measure two sets of torque value at one time. It can be used for the unity torque checking of double-hinge or for torque life test. Windows Chinese (English) software , easy to operate.

Features

●　The test conditions are stored and programmed by computer pictures. (including opening angle, speed, frequency, and pause time)

●　Record each 2 sets of torque-angle curves.

●　Concurrent display of double torque-angle curve and torque extinction life curve.

●　Diagram printout and storage (torque-angle curve, torque extinction life curve, test report).

●　 The test report can be produced automatically, transferred into files or output through network directly.

●　The specified upper and lower limit values can be entered for determining OK or NG automatically.

●　Quick-fixed fixtures to rise the testing speed.

●　Quick-fixed fixtures for hinge torque adjustment conveniently.

●　Concurrently display the hinge torque curve of both sides to determine the difference value rapidly.

●　Position set by servo motor accurately without over angle problems occurred.

●　Servo motor with air compression testing automatically without human operation .


Model	5300DS
Capacity	100kgf‧cm
Resolution	0.01kgf‧cm
Test angle	0-180degrees
Min. Analysis	0.5degrees
Speed range	60-7200〞/min
Drive motor	Servo motor
Dimension	880 (W)×500 (D)×1320 (H)mm
Weight	160kg
Power	AC 110V or 220V
