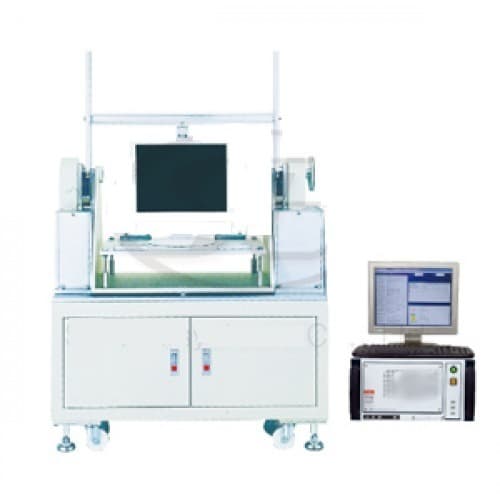

Kiểm tra gập xoay cho màn hình LCD 5300LS / Swing Tester for LCD Monitor 5300LS

SKU:1211-10400

This model is used to test the torque value of LCD monitor swiveling in forward and backward.
It can measure the hinge torque value, register the curve fluctuation and produce torque extinction life curve. Windows Chinese (English) version, easy to operate.
Quick alignment device and multifunctional fixtures to overcome all holding problem of LCD monitor.

This model is used to test the torque value of LCD monitor swiveling in forward and backward. It can measure the hinge torque value, register the curve fluctuation and produce torque extinction life curve. Windows Chinese (English) version, easy to operate. Quick alignment device and multifunctional fixtures to overcome all holding problem of LCD monitor.

Features

●　The test conditions are stored and programmed by computer pictures. (Including opening angle, speed frequency, and pause time)

●　Record each torque-angle curve.

●　Concurrent display of torque-angle curve and torque extinction curve.

●　Diagram printout and storage (torque-angle curve, torque extinction life curve, test report).

●　The test report can be produced automatically, transferred into files or output through network directly.

●　Upper and lower limit values input. The machine will stop automatically once over the values.

●　The work piece hinge, designed in the bottom or middle sides, can be tested.

●　Selectable single-sided or double-sided force exerting.

●　Fixtures were designed to simulate user’s operation.

●　Measure torque value to simulate the torque performance.


Model	5300LS
Torque capacity	200kgf‧cm
Resolution	0.01kgf‧cm
Size capacity	32in
Interval	700mm
Test angle	0-180 degrees
Min. Analysis	0.5 degrees
Speed	60-7200 〞/min
Drive motor	Servo motor
Dimension	1050 (W)×500 (D)×1600 (H)mm
Weight	180kg
Power	AC 110V or 220V
