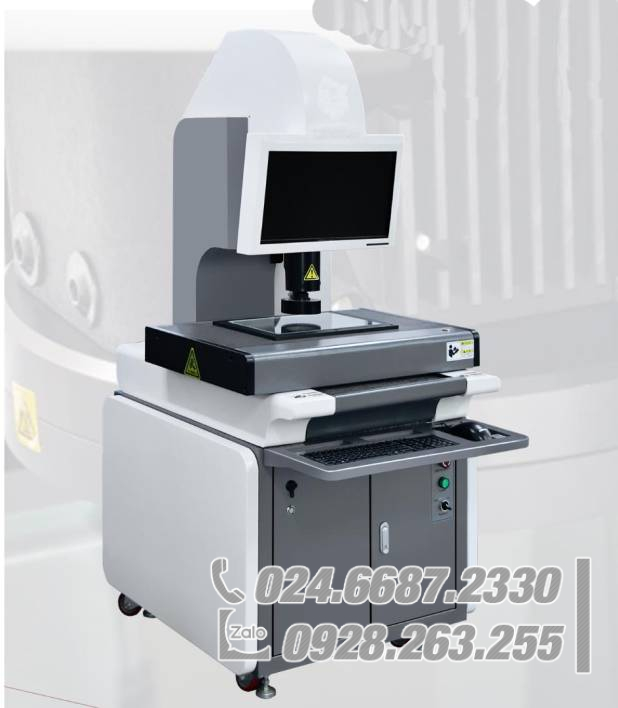

- 00 grade granite base column, platform, ensure machine accuracy & stability
- Imported key components with rigorous, normative assembling & adjustment
- 3-axis CNC controls; full-automatic measurement
- 3 axis adopt high precision grinding screw & Hiwin linear guideway
- 3.2M pixel digital color CCD offer sharp image display
- Can optional Renishaw Probe or Laser for high-accuracy contact & none-contact measure
| Model | GSM-CNC-300A | GSM-CNC-400A | GSM-CNC-500A |
| Measuring range(mm) | 300*200*200 | 400*300*200 | 500*400*200 |
| Machine size(mm) | 920*750*1700 | 1140*900*1700 | 1350*1050*1700 |
| Weight(kg) | 350 | 400 | 450 |
| Max. load(kg) | 25 | ||
| Accuracy of X-Y axis(um) | 2.5+L/200 | 3.0+L/200 | |
| XYZ resolution(um) | 0.5 | ||
| Repeatability(mm) | 0.003 | ||
| Moving Speed(mm/s) | X-Y:300 Z:100 | ||
| Magnification | optics zoom ratio: 0.7-4.5X; image zoom ratio: 35-230X | ||
| Control system | UWC3500 fully closed-loop control | ||
| Operated mode | Software+"joy |
Parts and Component
| Parts | Specification | |
| CCD | 3.2M Pixel Digital Color CCD | |
| Optics | Auto lens 0.7-4.5X (6.5:1) | |
| Surface illumination | LED cold light 256 level programmable Brightness adjustable | |
| Bottle illumination | LED cold light Parallel light256 level programmable Brightness adjustable | |
| XYZ Axis Linear guide | Taiwan Hiwin linear guideway | |
| Screw | Tawin Hiwin Screw | |
| Linear scale | Metal linear scale resolution 0.5um | |
| Motor | HCFA AC servo Motor | |
| Joystick | Advanced joystick with lock axis function |
MEASURING SOFTWARE:
Software Main Function software is with user friendly UI, easy to learn, powerful function, allows the users to achieve fast and
precise measuring. The software is offering full English language UI, also allows new language development.
- Automatic measurement function: using the mouse to automatically find a straight line, click on the circle, box
selected area , arc - Automatic CNC: with the help of the fixture can be fully automatic measurement (measuring efficiency is
much higher than the peers) - Quick optical measuring height function, measuring a height within 3 seconds
- Optical measurement of flatness
- Auxiliary focus: to help find the Z position when image most clearly (auxiliary focus to improve accuracy of
measurement) - Image output: the measurement result can be output in the format of image (equal the digital camera functions)
- Shape tolerance, roundness, straightness, parallelism and perpendicularity, concentricity
- Set the tolerance: can set the product's actual size that out of range, beyond the background with red warning
- CCD correction: correction image distortion
- Contour tracking: through the software automatically calculate the outline of work piece and display (display
measuring location) - Vector graphics function: primitive font can be magnification or shrink without a limit
- Mark function: dra, diameter, Angle, linear dimension, alignment, text annotations, coordinates
- The command line: can either enter the coordinates directly from the command line, involves, line, circle, arc,
etc., to meet special needs
