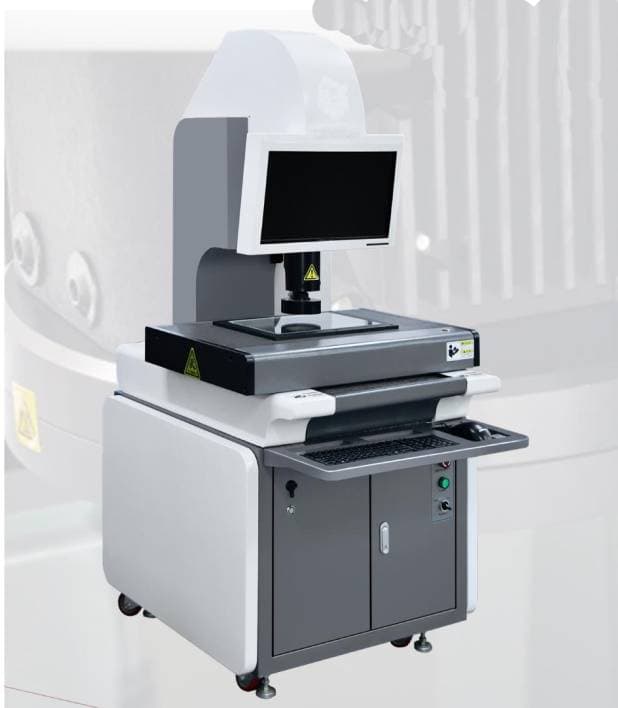

XYC-TEK GSM-CNC-400A Full-Automatic Video Measuring Machine

• 00 grade granite base column, platform, ensure machine accuracy & stability
• Imported key components with rigorous, normative assembling & adjustment
• 3-axis CNC controls; full-automatic measurement
• 3 axis adopt high precision grinding screw & Hiwin linear guideway
• 3.2M pixel digital color CCD offer sharp image display
• Can optional Renishaw Probe or Laser for high-accuracy contact & none-contact measure



Model	GSM-CNC-300A	GSM-CNC-400A	GSM-CNC-500A
Measuring range(mm)	300*200*200	400*300*200	500*400*200
Machine size(mm)	920*750*1700	1140*900*1700	1350*1050*1700
Weight(kg)	350	400	450
Max. load(kg)	25
Accuracy of X-Y axis(um)	2.5+L/200	3.0+L/200
XYZ resolution(um)	0.5
Repeatability(mm)	0.003
Moving Speed(mm/s)	X-Y:300 Z:100
Magnification	optics zoom ratio: 0.7-4.5X; image zoom ratio: 35-230X
Control system	UWC3500 fully closed-loop control
Operated mode	Software+"joy

Parts and Component

Parts	Specification
CCD	3.2M Pixel Digital Color CCD
Optics	Auto lens 0.7-4.5X (6.5:1)
Surface illumination	LED cold light 256 level programmable Brightness adjustable
Bottle illumination	LED cold light Parallel light256 level programmable Brightness adjustable
XYZ Axis Linear guide	Taiwan Hiwin linear guideway
Screw	Tawin Hiwin Screw
Linear scale	Metal linear scale resolution 0.5um
Motor	HCFA AC servo Motor
Joystick	Advanced joystick with lock axis function



MEASURING SOFTWARE:

Software Main Function software is with user friendly UI, easy to learn, powerful function, allows the users to achieve fast and
precise measuring. The software is offering full English language UI, also allows new language development.

• Automatic measurement function: using the mouse to automatically find a straight line, click on the circle, box
  selected area , arc
• Automatic CNC: with the help of the fixture can be fully automatic measurement (measuring efficiency is
  much higher than the peers)
• Quick optical measuring height function, measuring a height within 3 seconds
• Optical measurement of flatness
• Auxiliary focus: to help find the Z position when image most clearly (auxiliary focus to improve accuracy of
  measurement)
• Image output: the measurement result can be output in the format of image (equal the digital camera functions)
• Shape tolerance, roundness, straightness, parallelism and perpendicularity, concentricity
• Set the tolerance: can set the product's actual size that out of range, beyond the background with red warning
• CCD correction: correction image distortion
• Contour tracking: through the software automatically calculate the outline of work piece and display (display
  measuring location)
• Vector graphics function: primitive font can be magnification or shrink without a limit
• Mark function: dra, diameter, Angle, linear dimension, alignment, text annotations, coordinates
• The command line: can either enter the coordinates directly from the command line, involves, line, circle, arc,
  etc., to meet special needs
