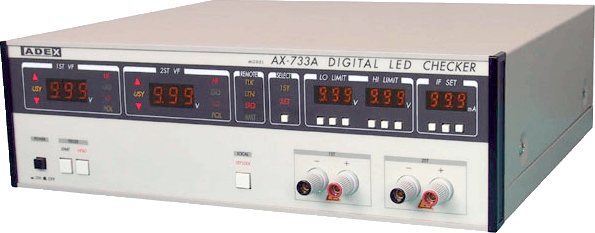

Bộ kiểm tra đèn LED 2 kênh AX-733A Adexaile ADEX

● VF check function 2 channel inclusion

● Measuring current setting [max.99.9mA]

● VF measuring indication [max.9.99V]

● VF comparator setting [HI LIMIT/LO LIMIT]

● Determination output HI(OPEN), GO, LO(SHORT) POL(negative polarity)

● LED negative polarity, VF measuring

Specifications

	Range	Accuracy
Measuring current setting  (IF SET)	DC1.0mA～99.9mA	within ±0.1mA ±1digit
VF measurement	DC0.00V～9.99V	within ±0.5％ of F.S ±1digit
VF limit setting (HI LIMIT) (LO LIMIT)	0.00V～9.99V	--------
0.00V～9.99V	--------

Range	Measuring range	Accuracy
100Ω	Against STANDARD ＋0.0％～＋19.9％ ※	[Rc] ±0.3％±1digit [ENR] ±2.0％±1digit [CRV] ±0.5％±1digit
1kΩ
10kΩ
100kΩ
1MΩ
10MΩ

Measuring time
Measuring item	Measure by external signal	Measure by "Free run"
ΔTR	about 23.5msec.	about 21 times per second
ΔTR＋Rc	about 43msec.	about 15 times per second
ΔTR＋Rc＋ENR/CRV	Above time ＋ noise measuring time  ※1	Above time ＋ noise measuring time  ※2

Completion of the measurement signal (EOC) Pulse width	1msec.～199msec. [000] Continuous Output when setting
Measuring method	4-terminal measurement
Comparator setting range	ΔTR：＋LIMIT　＋0.0％～＋99.9％　－LIMIT　－0.0％～－99.9％ Rc, ENR, CRV: ＋LIMIT　＋0.0％～＋19.9％
Operation condition	[Temp.] ＋5℃～＋40℃　　[Humidity] less than 85％
Power supply	AC100V/117V/220V/240V　＋10％ selectable, 50/60Hz, about 30VA
Outer dimension	333 (W) ×99 (H) ×300 (D) mm  (excluding protruding parts such as rubber legs, etc.)
Weight	about 4㎏

The Outline

AX-733A is the unit built-in the function to check the VF for LED elements. The measurement current is setup 1.0mA～99.9mA each, indicates the VF value from 0.00V～9.99V.

Also the comparator indicates for panel and outputs the judgment signal of HI (OPEN), GO (SHORT) set up by LO LIMIT and HI LIMIT for the VF value. When LED is reverse polarity, outputs POL signal, and judges the VF measurement to flow the measurement current into the opposite direction at the same time.
