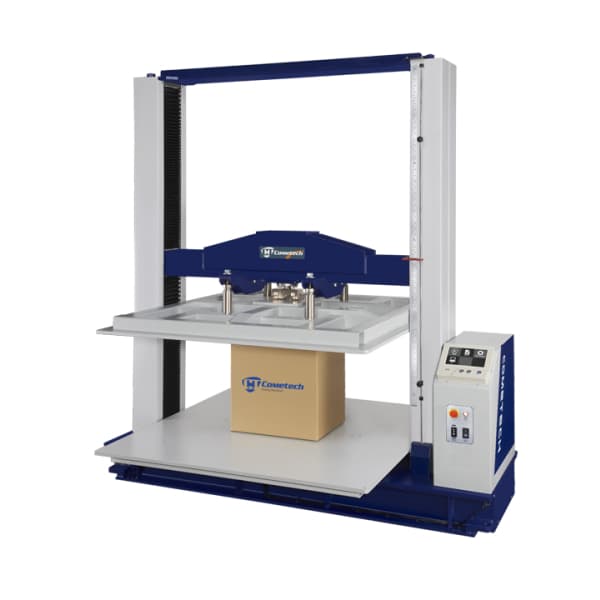

Cometech QC-121D2 Máy kiểm tra độ nén hộp 121D2

SKU:2077-20630

Product Serial : QC-121D2

121D2-Box Compression tester
Confirm to ISO 12048、ISO 2872、ASTM D4169、TAPPI T804、 GB T4857-4、 JIS-Z-0403-2、ASTM D642、GBIT 16491、DIN 55440-1 Standard

QC-121D2 is used for testing strength of large packing materials, such as carton, foam, Styrofoam, etc. It simulates how boxes react under large force, which is a important test in Logistics/Warehouse management. QC-121 has multiple sensors so that it can provide test results that is closer to real situation; Upper compression platen can switch between U-joint or Fixed platen, allowing users to adjust base on their needs. Display on the the controller can analyze basic test data, and show graph. If users want to output test report, store test data, or do advance analyze, we also has a optional software to go along with.

Model	QC-121D2 (A type)	QC-121D2 (B type)	QC-121D2 (C type)	QC-121D2 (D type)
Test space	100×100×120 cm	120×120×120 cm	100×100×120 cm	120×120×120 cm
Max.capacity	2000 kg	5000 kg
Platen Type	Fixed/U-joint, adjustable.
Units	Force: gf, kgf, lbf, N, kN, ozf, tonf(SI), ton(long), tonf(short) Stress: Kpa, Mpa, psi, bar, mm-Aq, mm-Hg
Force Resolution	23 bits
Force Precision	1/10,000
Stroke resolution	0.00125mm
Speed range	2 ~ 200mm/min
Hardware safety protection	Upper/Lower limit, Emergency stop button
Power source
Connect to PC thru	TCP/IP
Power phase	Single Phase 110/220VAC . 5A
Dimension	162×100×195 cm	182×120×195 cm	162×100×195 cm	182×120×195 cm
Weight	800 kg	900 kg	850 kg	950 kg
