| Model | QC-42111 |
|---|---|
| Capacity | 0~10N-M |
| Test Speed | 0.5~100 r/min |
| Test Range | Max. Width 345mm Max. Height 400mm (not include the grips) |
| Unit | MN-m, kN-m, N-m, N-cm, mN-m, kgf-m, kgf-cm, kgf-mm, gf-cm, gf-mm, lbf-ft, lbf-in, ozf-in |
| Operation | Use software to for operation and analysis |
| Feature | 1. Real time graph shows during the test. 2. User friendly test setting module. User can set up direction, speed, test end condition, etc. 3. Manual up/down function to adjust the test space. |
| Accessory | Specified grips for sample (additional charge fee based on your sample size) |
| Voltage | AC200~240V |
| Size | 73 cm X 40 cm X 95 cm |
| Weight | 115 kg |

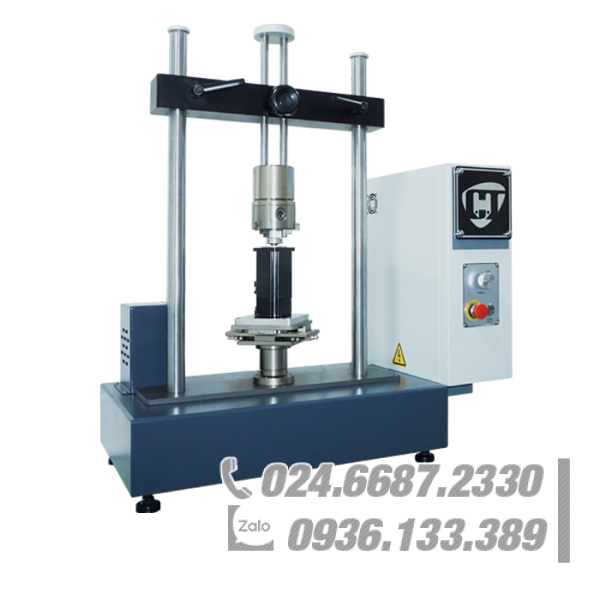

Cometech QC-42111 Máy đo mô-men xoắn có thể lập trình
Product Serial : QC-42111
Programmable Torque Tester
The machine can do clockwise and counterclockwise test analysis by dynamic method. It is included with software which can do analysis of Max. Static torsion, dynamic torsion, etc. It can do sample analysis in different speed. During the test, it will show the real time data of torsion graph and direction and record the sample torsion completely in the spin. According to different test sample, the clamping grips will be customized.Different size sample can use the manual up/down function to adjust the test height.
Industry:Electrical part, Motor, Bearing, related transmission part, Package
