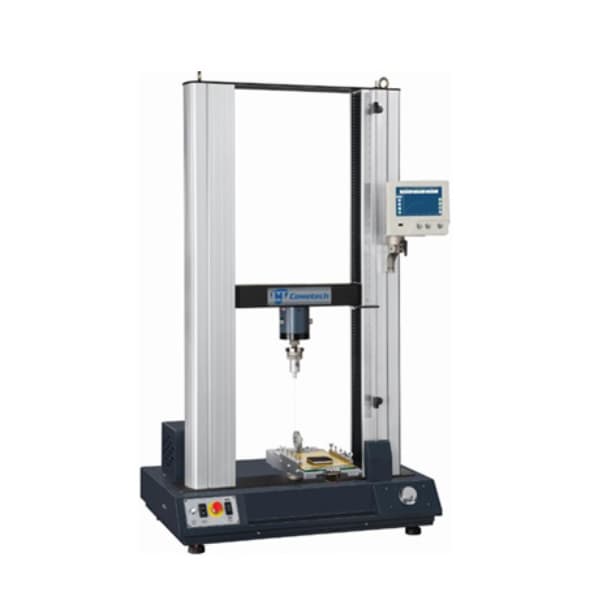

COMETECH QC-506M2F (20kN) Máy kiểm tra vật liệu
Confirm to ISO 7500-1, ASTM E4 , ASTM D-76, DIN5122 , JIS B7721/B7733 , EN 1002-2, BS1610,GB T228 Standard
The table type has large test space and long stroke. Multiple model of width can satisfy large specimen test requirement. The maximum test capacity is 20 kN with high precision, low noise and maintenance-free of servo drive system. Maintenance-free transmission mechanism to reduce machine maintenance problems and in the same time it provides a quiet test environment and high-precision test results
Supportprecisionjogwheel can befine tuning machine movement, with precision positioning and accurate calibration to increase test accuracy. High-speed signal feedback mechanism can reduce the chance of machine overload. The reserved external signal can be connected to an external signal source, increasing machine control mode.
Industry：Rubber, Plastic, Paper, Textile, Metal, Wood, Tape, Electron, Package, Medical, Architecture
ModelQC-506M2FQC-506M2F extendedMax. Capacity20kNUnits
Force: gf, kgf, lbf, N, kN, ozf, tonf(SI), ton(long), tonf(short)
Pressure: Kpa, Mpa, psi, bar, mm-Aq, mm-HgForce Resolution31 bitsForce Precision1/100,000Test stroke(w/o grip)800mm1200mmStroke resolution0.0001 mmSpace between columns425 mm (550mm, 680mm, 800mm optional)Speed range0.0002 ~ 830 mm/min adjustable（Set up by computerized）Speed accuracyHigh speed mode0.05 ~ 830 mm/minLow speed mode0.0002~3 mm/minPC-PortRJ45(TCP/IP)(Connect software optional)Data sampling rate1200Hz (Max.)Hardware safety protectionupper limit, lower limit, emergency stop buttonMotor typeServo MotorStiffness Slop1585kgf/mmFeature
※Automatic reading of load cell feature information
※Automatic reading ofdisplacement sensor feature information
※force display, displacement display, time display, stress display and strain display
※External analog input (2-channel simultaneous reading of voltage or current)
※Test force automatically zero
※Test force self-defined calibration
※Break detection
※Automatic return
※Force overload protection
Power SupplySingle phase 200V-240 V, 5ADimension of Machine91 x 58 x 148 cm95 x 58 x 190 cmWeight of Machine145kgf170kgf
