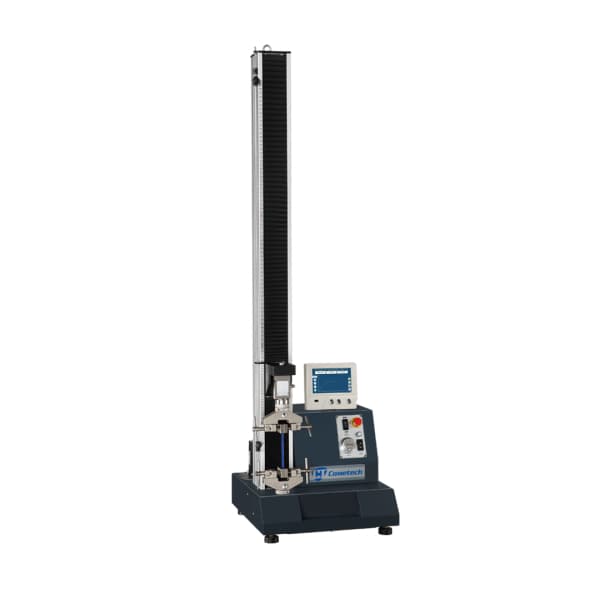

COMETECH QC-508M2F (2kN) - Máy kiểm tra độ bền kéo (nén) máy tính mở rộng
Confirm to ISO 7500-1, ASTM E4, ASTM D-76, DIN5122, JIS B7721/B7733, EN 1002-2, BS1610, GB T228 Standard
QC-508M2F table type machine has capacity up to 2kN. It offers a quiet testing environment and accurate test result. On stand-alone mode, it can do tensile test, compression test, bending test and so on. Transmission system needs little maintenance even after being used for a while. The precise hand wheel controls grip’s movement at a small scale. With this tool, users can move the grip to a precise position. The force signal is emitted and received instantly so as to prevent overload. A port is reserved for signals that are outside the machine for a more flexible operation.
Industry: Rubber, Plastic, Paper, Textile, Metal, Wood, Tape, Electron, Package, Medical, Construction
| Model | QC-508M2F (Extended) |
|---|---|
| Max. Capacity | 2 kN |
| Units | Force: gf, kgf, lbf, N, kN, ozf, tonf(SI), ton(long), tonf(short) Pressure: Kpa, Mpa, psi, bar, mm-Aq, mm-Hg |
| Force Resolution | 31 bits |
| Force Precision | 1/100,000 |
| Test Stroke(w/o grip) | 1100mm |
| Stroke Resolution | 0.0001 mm |
| Cantilever Distance | 70mm |
| Speed Range | Low Speed Mode : 0.0005~9mm/minHigh Speed Mode : 0.05~1000mm/min |
| Speed Accuracy | Lower 1% |
| PC-Port | RJ45(TCP/IP) |
| Data Sampling Rate | Max.1200Hz |
| Motor Type | Servo Motor |
| Feature | ※Force, displacement, time, stress, and strain display in real time ※The calibration parameter is recorded automatically in the loadcell. When it is replaced, no adjustment is required. ※The displacement sensor can be recognized by the controller automatically. When it is replaced, no complicated setting is required. ※User-friendly test settings: moving direction, force/displacement zeroed automatically, test speed, pause are adjustable. ※Automatic return after the test ※Machine protection by force, time, displacement, etc. ※The jog precisely controls displacement. ※Optional display is available for stand-alone mode. ※In user-defined mode, cyclic test and test in a long duration can be achieved. |
| Power Supply | Single Phase, 200 ~ 240VAC，5A |
| Dimension | 50× 53 × 175 cm |
| Weight | 100 kgf |
?
