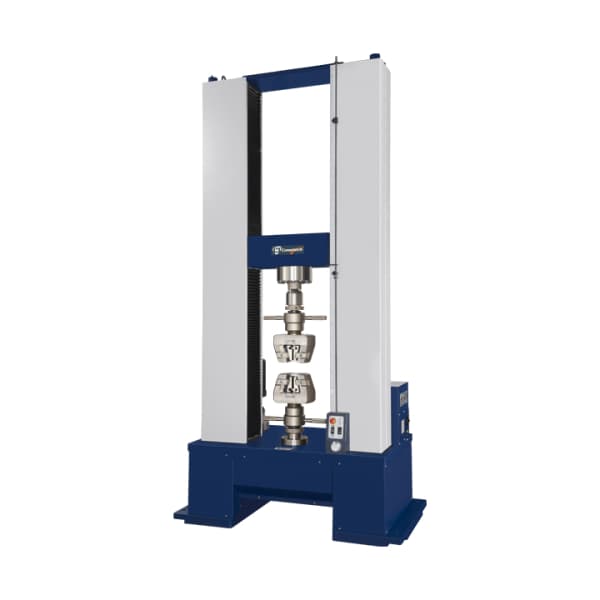

COMETECH QC-50AM1F và QC-500M1F Máy kiểm tra độ bền kéo (nén) được điều khiển bằng máy tính
Confirm to ISO 7500-1, JJG475-88, ASTM E4, DIN5122, JIS B7721/B7733, EN 10002-1, EN 1002-2,BS1610, GB228 Standard
This serial model is capable for the capacity that above 500KN test. It is design for tensile test, compression test, bending test and all kind of test. The UTM with high torque servo motor and high rigidity, high strength provide the motion and power. Effectively decrease the maintenance fee, also extend the life time of machine.
It is suitable for Metal, Composites and Architecture industry. Also provide the quiet testing environment and high accuracy test result. Support precision hand wheel to control the movements of the machines. Use precision positioning and the calibration of machines is more convenient to user. Also, could reduce overload situation. Can be stand-alone to processing simple test. Increase the usability of the machine in a variety of different environments.
Industry:Plastic, Textile, Metal and Architecture.
| Model | 50AM1F | 500M1F |
|---|---|---|
| Max. capacity | 600 kN | 500 kN |
| Units | Force: gf, kgf, lbf, N, kN, ozf, tonf(SI), ton(long), tonf(short) Pressure: Kpa, Mpa, psi, bar, mm-Aq, mm-Hg |
|
| Force Resolution | 31 bits | |
| Force Precision | 1/50,000 | |
| Test stroke(w/o grip) | 1500 mm | |
| Stroke resolution | 0.0001 mm | |
| Space between columns | 550 mm(680mm, 800mm Optional) | |
| Speed range | 0.2 ~ 330mm/min (adjustable) | |
| PC-Port | RJ45(TCP/IP)(software optional) | |
| Data sampling rate | Max.400Hz | |
| Hardware safety protection | upper limit, lower limit, emergency stop button | |
| Motor type | Servo Motor | |
| Feature | ※Automatic reading of load cell feature information ※Automatic reading ofdisplacement sensor feature information ※force display, displacement display, time display, stress display and strain display ※External analog input (2-channel simultaneous reading of voltage or current) ※Test force automatically zero ※Test force self-defined calibration ※Break detection ※Automatic return ※Force overload protection |
|
| Power Supply | 3 phase200~240VAC，70 A | |
| Dimension of Machine | 145 x 85 x 295cm | |
| Weight of Machine | 2350kg |
