Cometech QC-652S Máy đo chỉ số dòng chảy

SKU:2077-20270

Product Serial : QC-652S

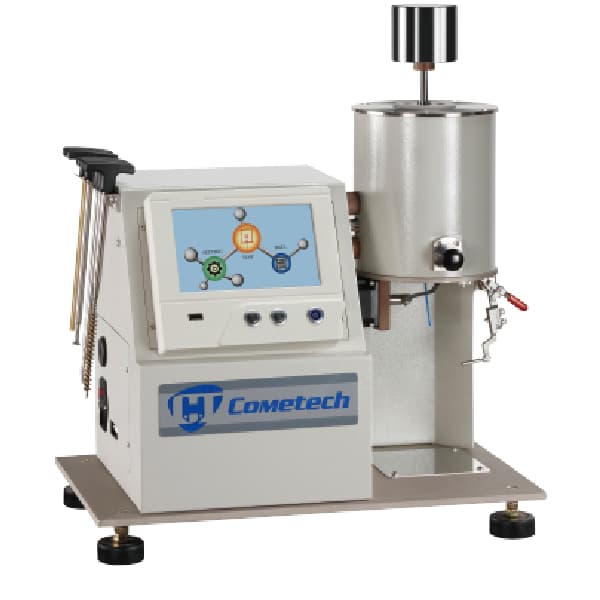

Melt Flow Index Tester
Confirm to ASTMD1238, D3364, ISO1133, GB- T3682 Standard

This tester can test thermoplastic melt mass flow rate(MFR) and melt volume flow rate(MVR), QC-652S build-in ISO/ASTM standards test methods, operative picture is adopted touch panel guided conversation style screen, user can precisely and smoothly to proceed with test, build-in analysis function and with flash drive save function.

Optional accessories can be selected according to different materials properties, such as high flow materialblock mechanism or MVR displacement test mechanism to proceed with various tests.

Industry : Plastic

Use temperature	50~360℃
Test Temperature, T	Maximum allowable deviation from required test temperature
At (10±1) mm above the top surface of the standard die	From (10±1) mm to (70±1) mm above the top surface of the standard die
125 ≦ T ＜250	±1℃	±2℃
250 ≦T＜300	±1℃	±2.5℃
300 ≦T	±1℃	±3℃
Counter accuracy	±0.01s
Piston push rod weight	100g
Automatic cut	Interval time 1-300 seconds can be set
Heater size	9.55±0.01mm
Hole mold	2.095±0.005mm
Counter weight	Stainless steel 1100g、2060g、3700g、4900g、9900g、12400g、19900g、21500g(Optional) (rod weight 100g)
Accessories	Cleaning brush、measuring cups、funnel and Die calibrationplug gauge
Weight	30 kg (40kg with MVR part)
Dimension	47x38x48cm
Optional	High MI value material blockmechanism, MVR test mechanism.

Cometech reserves ultimate modification right of product specification.
