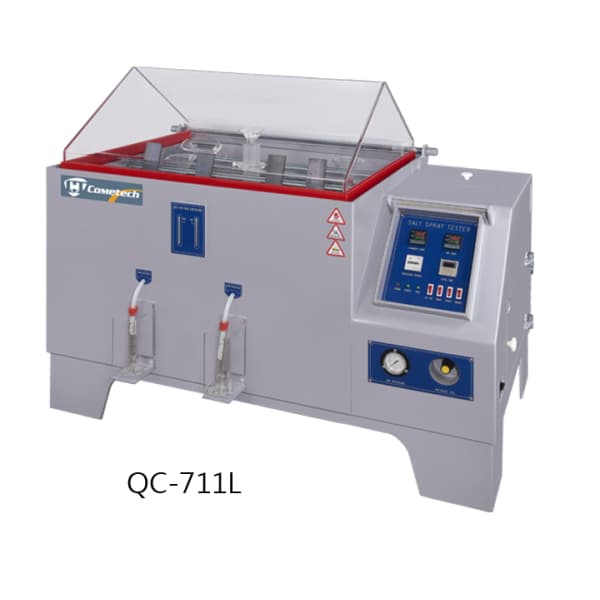

COMETECH QC-711M/L Máy kiểm tra phun muối
Confirm to JIS D-0201, K5400. D0205, H8681 / ASTM B-117,ISO 9227, JIS Z 2371, JIS H 8502 Standard
QC-711M/L Salt Spray Tester is used for testing parts rust-proof ability that had been through surface treatment such as electroplating, coating, anodizing, etc. With misty form’s salt water to speed up corrosion, in an attempt to test specimen rust-proof ability in short time, this tester is suitable to use in hardware, screw and electroplating industries and research organizations, etc.
There are three types of tests: Neutral salt spray test, Acetic acid spray test and Copper Speed up Acetic acid spray test. Three test specimens are needed or according to agreement. Vertical Suspending specimens or with vertical line as 15-30゜to put in test chamber, specimens interval should not below 20mm, liquid drops on brace should not drop on the specimens, set required time to proceed with test and after finishing, use flow cold water wash specimen surface deposited salt, examining surface and levels after drying.
Industry: Metal
| Model | QC-711M | QC-711L |
|---|---|---|
| Required Collecting Cup | 1Pc | 2Pcs |
| Power of Heater | 1000W | 2000W |
| Temp. Range | Chamber | Room Temp ~ 35℃ |
| Air | Room Temp~ 47℃ | |
| Machine Functions | Temp. Accuracy | ± 0.5℃ |
| Saturated air Pressure (Kg/cm2) |
0.8 ~ 2.0 ± 0.1 kg/cm² | |
| Spray volume (ml/80 cm2 /hr.) |
0.5 ~ 3.0 ml/hr | |
| P.H. | Salt Spray | 6.5 ~ 7.2 ml/hr |
| Cupric Acetate | 3.0 ~ 3.2 ml/hr | |
| Material | Exterior | P.V.C. or P.P |
| Interior | P.V.C. or P.P | |
| Systems | Salt Solution | Salt Spray, Cupric Acetate |
| Heating | Titanium alloy Heater | |
| Control | PID Digital electronic + SSR control | |
| Safety System | Circuit system load protection, over heating load protection, insufficient medicinal liquid protection | |
| Features | ※It is made of PP & P.V.C. with strong mechanics structure; Machine frame is acid proof, alkali proof, temperature proof and never aging, suitable for salt spray, cupric acetate various test specifications | |
| ※Patent nozzle makes spray device to spray fog fast and evenly | ||
| ※With hydrometer：Assist user to make salt solution and copper acetate solution, through hydrometer to confirm concentration | ||
| ※Fog volume and accelerating speed are adjustable for aging. | ||
| ※Specimen tilt 20°±5 to make the solution which falls on the specimen surface remain at fixed concentration. | ||
| ※Air tight system: falling fog will not spread out to corrode other metal parts. | ||
| ※Water will drain automatically if water level exceeds the limitation. | ||
| ※Exhaust vent：Keep the concentration of fog inside the chamber. | ||
| ※Functions：Anti-corrosion test for various surface treatments such as anodizing, electroplating, coating…etc. | ||
| ※Inner tubes with anticorrosive level to less the maintenance times | ||
| Power | Single phase 220V，50/60Hz | |
| Internal Dim. W × H × D(cm) |
60 × 40 × 45 | 90 × 50 × 60 |
| External Dim. W × H × D(cm) |
109 × 110 × 90 | 150 × 124 × 105 |
| Weight | 90 kg | 120 kg |
