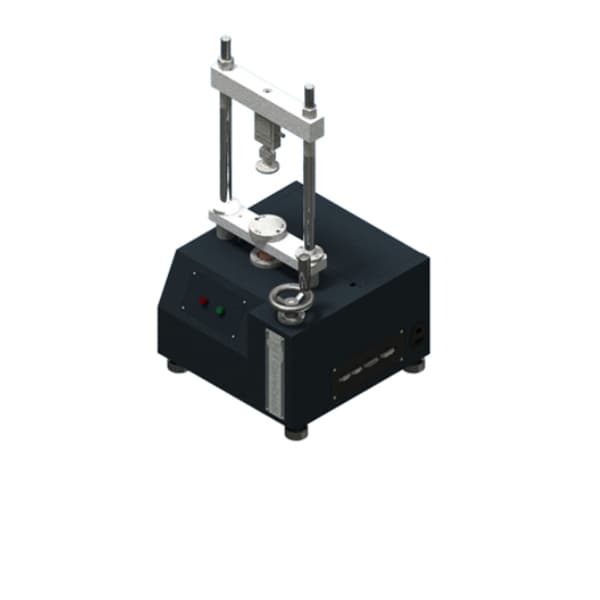

Cometech QC-904 Máy kiểm tra lò xo thủ công

SKU:2077-21240
Product Serial : QC-904
Manual Spring Tester

This tester is designed for small capacity spring tensile & compression tests, by manual way as power to do spring test. Its high rigidity, high strength frame structure is suitable to do metal, compound materials’ spring tests in high technology industries. Its light and small frame feature using together with notebook & laptop to become a device set easy to carry and can be placed in various locations.



This model is using special testing software-Rabbit which is use Windows 7/8 of personnel computer. It can do spring tensile & compression test. The software with multi-languages is very easy to operate. It also has all kinds of metric units, real-time graphs and also provides complete test data which can do complete analysis, intercomparison and save file functions after test.

Industry:Spring

Model QC-904 Manual Spring Tester
Max. capacity 1kN
Force Precision 1/10,000
Test Stroke(w/o grip) 150mm
Stroke resolution 0.001 mm
Speed range Manual
Speed precision 0.005mm
PC-Port TCP/IP
Data sample rate Max. 100 Hz
Power Supply Single phase 100~240V

Bạn cần hỗ trợ về s.phẩm?

Call 024-6687-2330

Accessory

A. Spring hook: For Tensile, three hooks sizes can be selected.

B. Compressive platen (dia.50mm): A platform for compression test.
