| Model | QC-DR1 Full-Auto Rockwell Hardness Tester |
|---|---|
| Preliminary Test Force | 10Kgf(98.1N) |
| Total Test Force | 60Kgf(588.4N),100Kgf(980.7N),150Kgf(1471N) |
| Rockwell Scale | HRA, HRB, HRC, HRD, HRE, HRF, HRG, HRH, HRK,HRL, HRM, HRP, HRR, HRS, HRV |
| Holding Time | 1-60s Adjustable |
| Value Display | 5.2”Touched screen panel |
| Resolution | 0.1HR |
| Loading Mode | Auto loading / constant /unloading |
| Conversion Scale | HRC、HV、HBS、HBW、HK、HAR、HRD、HR15N、HR30N、HR45N、HS、HRF、HR15T、HR30T、HR45T、HRB |
| Language | Chinese、English、German、Portuguese、Turkish、Czech、Korean |
| Software Correction | -3.0HR ~ +3.0HR, Step value 0.1HR |
| Data Processing | line chart analyzing for 2000 group single data ; providing single/group data viewing |
| Test Space | Max. height:280mm Depth:170mm |
| Power Supply | AC220V/50Hz or AC110V/60Hz |
| Dimension | 620x210x900mm |
| Weight | 125Kg |
Cometech QC-DR1 Máy kiểm tra độ cứng Rockwell hoàn toàn tự động
Product Serial : QC-DR1

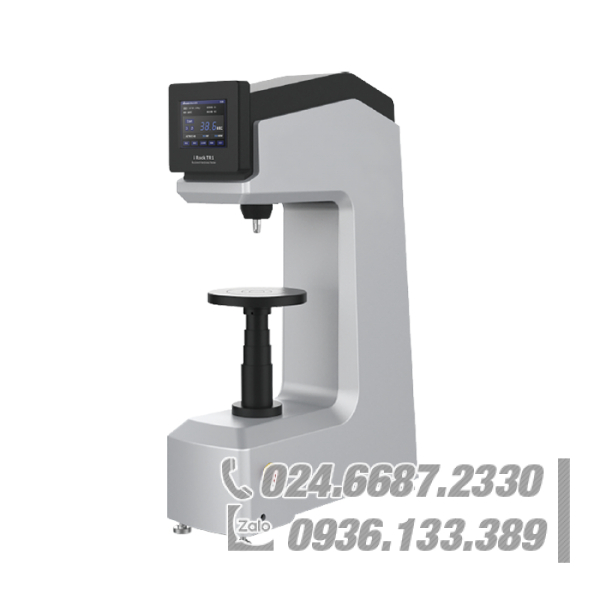

Full-Auto Rockwell Hardness Tester
Confirm to GB/T230.2, JJS Z2245, EN-ISO6508, ASTME-18 Standard
Confirm to GB/T230.2, JJS Z2245, EN-ISO6508, ASTME-18 Standard
Applications:
Hard alloy / Surface hardened steel / Copper alloy / Carburized steel / Hard cast steel / Malleable casting / Annealed steel / Hardened steel /Aluminum alloy / Soft steel / Bearing steel
Hard alloy / Surface hardened steel / Copper alloy / Carburized steel / Hard cast steel / Malleable casting / Annealed steel / Hardened steel /Aluminum alloy / Soft steel / Bearing steel
Features:
●Auto platform lifting, auto load-change, auto loading/unloading,auto calculation, auto testing.
●5.2“ touched screen panel, which can show test force, holding time, conversion value, intender type, and so on.
●Auto calculating and displaying test result, Max, Min, Average, and hardness deviation.
●Available to functions: upper and lower limit, data analysis for chart, single data test and group data test.
●With software compensation function, no need for mechanical adjustment.
●Available to auto conversion of hardness value, without checking hardness contrast table.
●Available languages: Chinese, English, German, Portuguese, Turkish, Czech, Korean.
●Available to save 2000 single test results and 1000 group test results.
