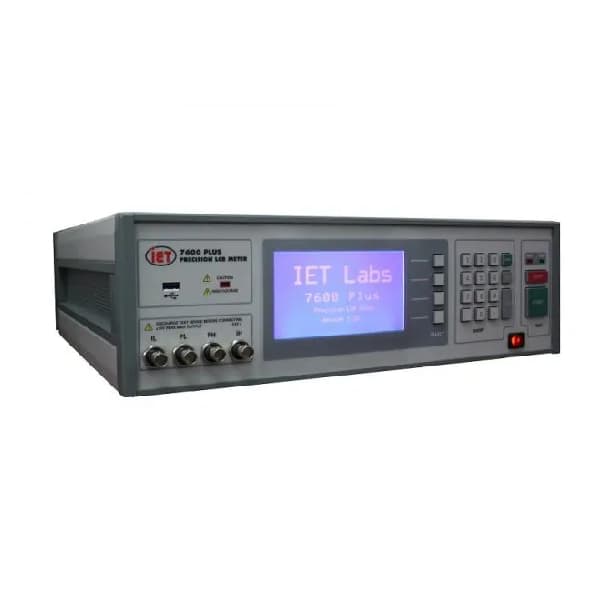

IET QUADTECH 7600 PLUS PRECISION LCR METER

Why Buy?

• Superior 1 MHz performance at low capacitance values
• Wide frequency range from 10 Hz to 2 MHz
• Local applications support

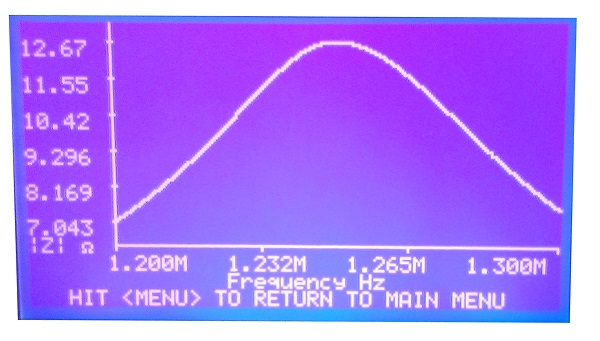

• The graphical sweep function of a measured parameter vs. frequency, voltage or current
• 7600 Plus is ideal for use with Dielectric Cells such as the LD-3 for ASTM D 150 Dielectric Constant Measurements

• Advantages of 7600 Plus versus 7600 Precision LCR Meter 7600 Plus Advantages
• A significantly lower cost alternative to the Agilent E4980A, see 7600 Plus Comparison
• Configure instrument and log results to PC using the 7600 Virtual Front Panel
• ISO-17025 accredited calibration certificate using resistors and capacitors at 1 kHz and 1 MHz
• Made in the USA

?

The 7600 Plus LCR Meter performs precision impedance measurements over a frequency range of 10 Hz to 2 MHz. The LCR Meter can measure 14 different impedance parameters with 0.05% accuracy, meeting today’s requirements for component and material testing. The ease of use and user-friendly menu programming makes the 7600 Plus ideal for applications in product development, incoming inspections, or production line testing.

Swept Measurements: Fast and accurate swept parameter measurements, graphical or tabular, for verification of component and material response to changes in ac test frequency, ac test voltage or ac test current, without the need for complex programming or an external controller
Program and Data Storage: Test setups can be stored and recalled from internal memory or USB memory stick. Measured data can be stored on a memory stick and then transferred to PC for data reduction and analysis.
Load Correction: Substantially improves instrument accuracy by performing measurements on a known standard and applying the correction to subsequent measurements. Ideal for repetitive testing of identical devices at like test conditions.
Automatic Calibration Procedure: The 7600 can be calibrated without returning the unit to the factory using a traceable IET/QuadTech 7000-09 Calibration Kit, reducing down time and calibration costs.
Easy to Use: Large LCD graphics display and user friendly menu driven interface allows the 7600 to be put on line quickly, providing useful measurements by operators with little to no training.

If you are looking for a more cost effective LCR Meter See our LCR Meter Selection Guide
