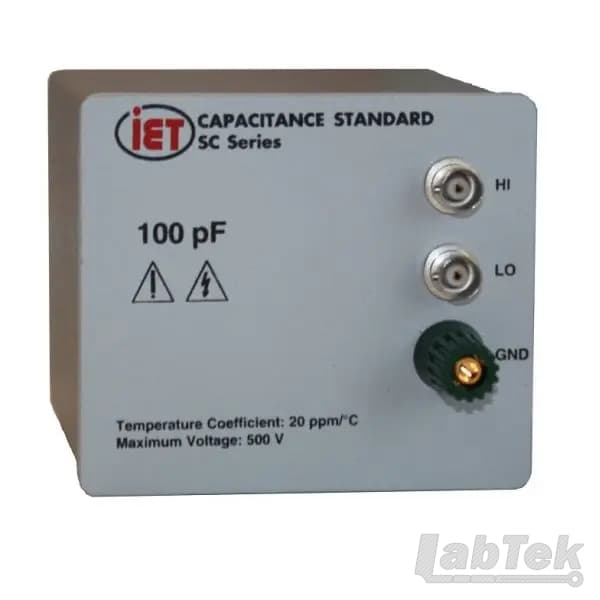

IET SCA SERIES Điện dung tiêu chuẩn
- Values from 1 pF to 10,000 µF in any custom value available
- Stability as good as ±0.01 %/year
- Two-to-five terminal configuration, depending on model
- Excellent TC: as low as 10 ppm/°C
- 3 year warranty included
- Calibration accredited to ISO-17025 included
- Mechanically stabilized capacitors
- Calibrations available at standard or any custom frequency
- Available in BNC and Binding Posts depending on value
The SCA Standard Capacitor series are highly stable cost-effective capacitance standards with low temperature coefficient, low losses and a wide range of values of 1 pF - 10,000 µF. The cost and flexibility make this our most popular capacitance standard.
From 1 pF to 10 pF, these are made from precision air capacitors. Up to 1 µF, the standard capacitors are constructed of fixed mica capacitors of very high stability for use as two- or three-terminal reference or working standards in the laboratory. Above 1 µF they are made with hermetically sealed polypropylene sulfide,
Typical capacitors, observed over decades, have shown random fluctuations of less than + 0.01% in measured capacitance with no evidence of systemic drift.
