ACCELERATED WEATHERING TESTER ASTM、ISO
This tester reproduce the damage caused by sunlight, rain and dew in order to get specimen’s weathering durability.

Temp. range:UV temp.40～90℃ condensation temp.40～60℃Lamp Q’ty:Ultraviolet lampX8,sparesX4Water: tap 8 liters/day
Mã sản phẩm: 1172-20250 Danh mục:

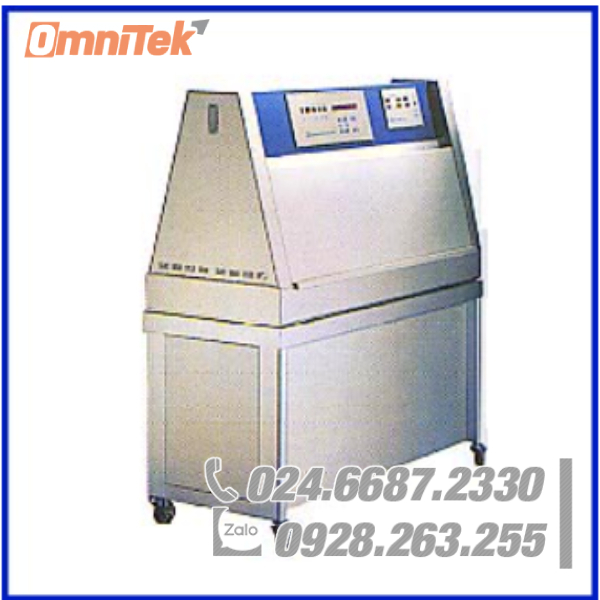

JIA-606ACCELERATED WEATHERING TESTER ASTM、ISO
The Tester reproduces the damage caused by sunlight, rain and dew. The QUV tests materials by exposing them to alternating cycles of light and moisture at controlled, elevated temperatures. The QUV simulates the effect of sunlight with fluorescent ultraviolet (UV) lamps. It simulates dew and rain with condensing humidity and water sprays. Exposure conditions can be varied to simulate various end-use environments. Feature: Conform to ISO 4892, ASTM G53, D4329, D4587, D4799, SAEJ2020, and numerous international test methods and material specification requirement. Easy to use, easy programming, self-diagnostics, affordable price and operation cost, ISO 9000 compliance. Use fluorescent lights to simulate the damaging effects of sunlight. Use condensation mechanism to simulate the effects of rain and dew.
SpecSpec:
UV Exposure Yes
Condensation Yes
Strip Chart Recorder options
UV Temp 50℃~80℃ (122-185℉)
Condensation Temp 40℃~60℃ (104-140℉)
Water Tap or Dl 8 liters/minute during spray
Test Capacity 75×150mm, 48 specimens
Dimension (WXDXH) 137X53X135㎝
Weight 136 kg
Power 1∮,AC120V, 60Hz , 16A / 230V, 50Hz , 9A , 1800W(Max )
