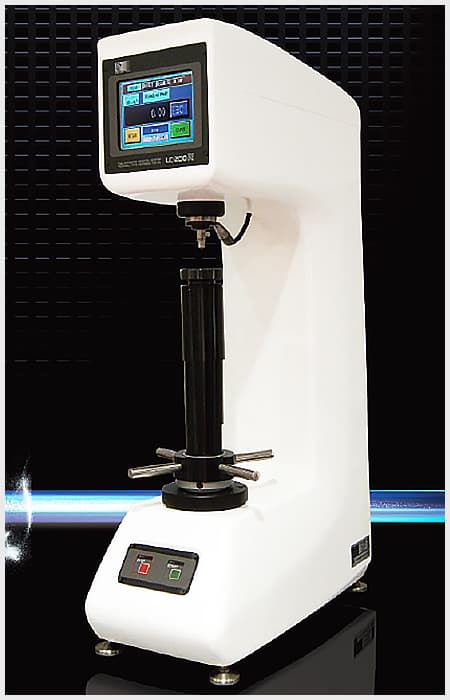

LOAD-CELL LC-200R/LC-200RB Series

OUTSTANDIING FEATURES

• Direct Loading Method with Load-Cell Feedback instead of Weights System & Direct Linear Displacement Measurement.
  • High Speed Test Cycle and Extremely Accurate Loading Control based on Intelligent Software come true!
• Ultimate in Flexibility conforming to Various Requirements by ISO, JIS, ASTM. etc.
• User-friendly One-touch Operation on vivid 8-Color Touch-Panel for Display and Input all Test Conditions.
• One Tester, All Rockwell Scales, Regular & Superficial, and Light Load Brinell Test instantly available with the touch of a finger.
  • In addition to all Standard Rockwell Test Loads, the LC-200R Series allow User Selection of Minor/ Major Load Combination(anywhere between 3 and 200 kgf) allowing Creation of Customized Rockwell Type Test - Ideal for Research Application!
• Entire Test Cycle will be performed Full-Automatically.
  • Descent of Load Shaft ～Minor Load Application ～Test Load Application/Hold/Release ～Hardness Display～ Ascent of Load Shaft
• 8 Languages available.
  • Japanese/ English/ German/ French/ Italian/ Spanish/ Chinese/ Korean
• One Touch Selection for [Plastics Test Mode] conforming to JIS and ASTM Standard available.
• Detection and Output of [Max. Indentation Depth] possible.
  • This Function is very Effective to provide Precious Data for Evaluation of [Fracture Toughness] of Fine Ceramics and Compound Materials.
• Various Data Correction available.
  • Max. Five Points on HR/ Offset on each HR/ HR on Convex Cylindrical Surface (ASTM)/ HRC on Convex Round Surface(JIS)
• Max. 2000 Data Memory Capacity.
• Various Data Editing & Statistical Function available.
  • Data Editing/ Statistic Data (Test Times/ Max./ Min./ Mean/ Range/ Standard Deviation/ Dispersion/ Coefficient of Variation)/ Graph Chart Display/ Histogram Display
• One Touch Selection of Test Load in Kgf or SI Unit available.
• Self Diagnosis Function available.
  • Display Troubles with Motors and Switches automatically.

MEASUREMENT

SCALE SELECTION

FUNCTION SETTING

STATISTICAL DATE

LANGUAGE SELECTION

ERROR DISPLAY
